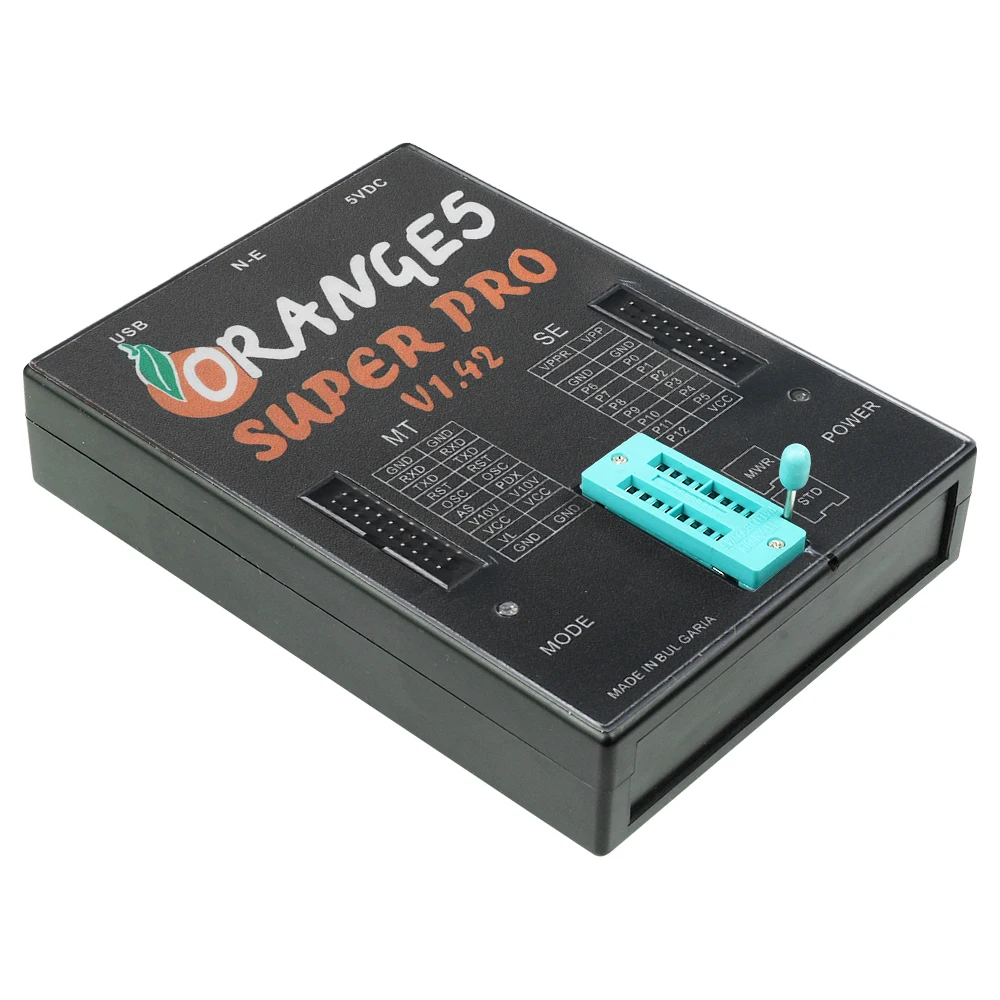

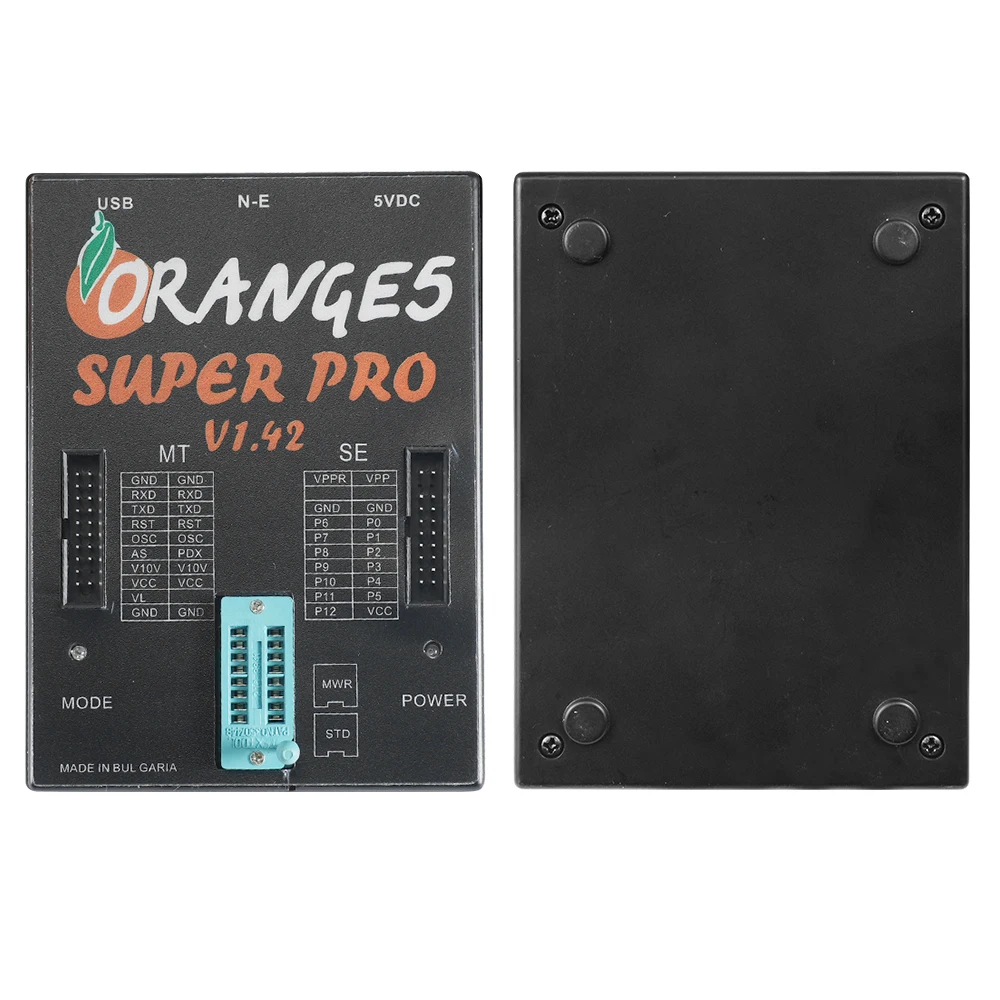

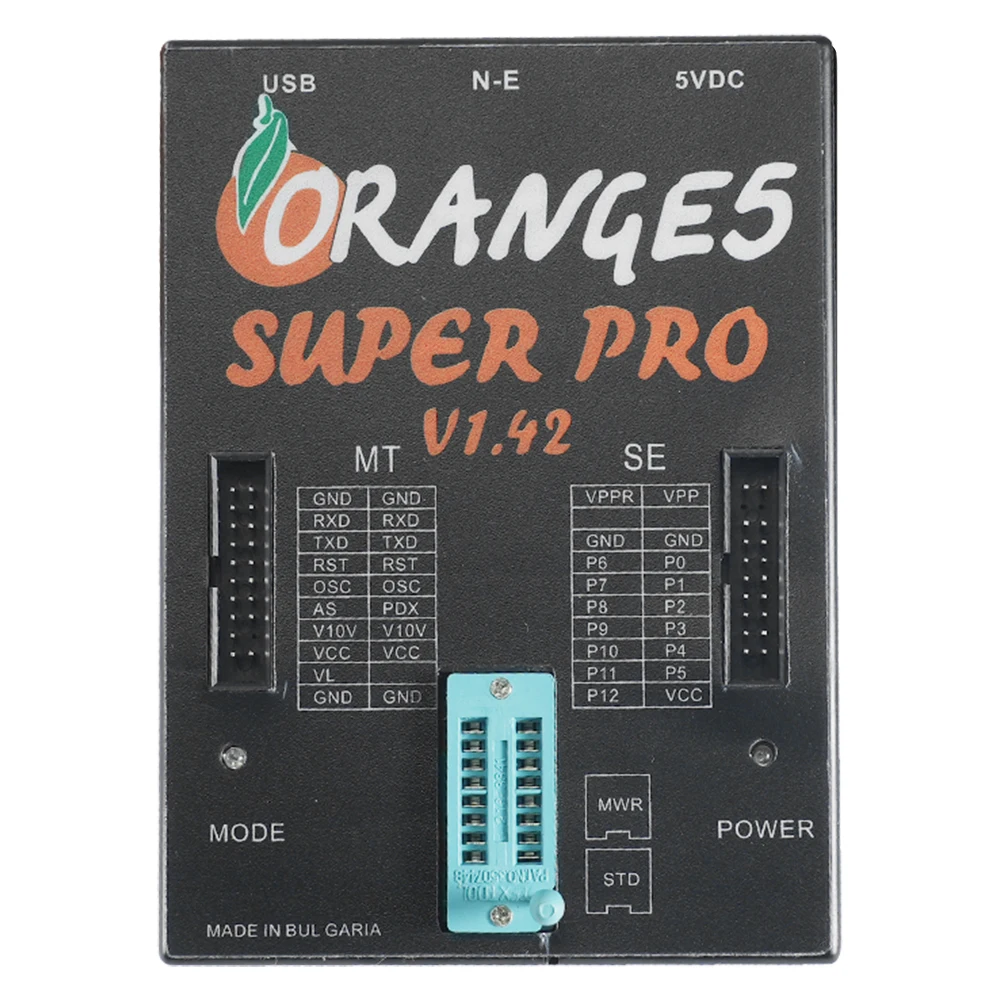

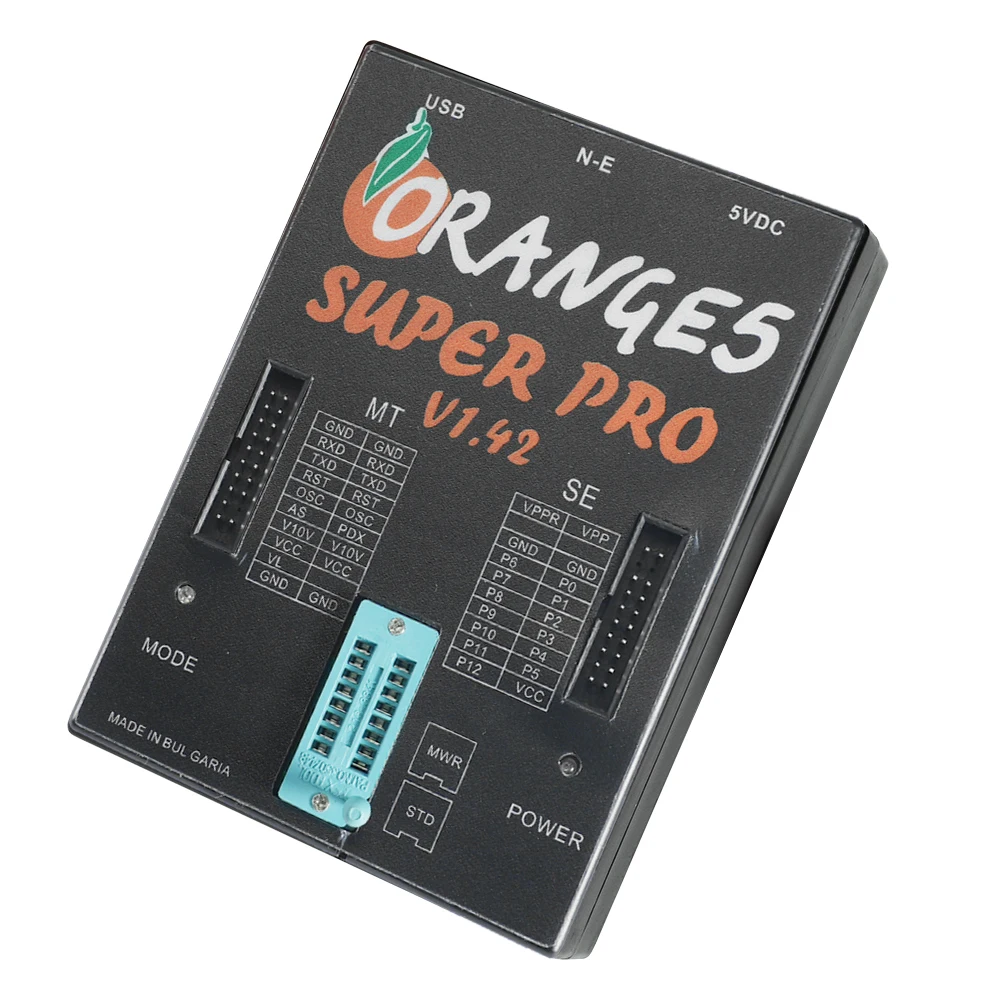

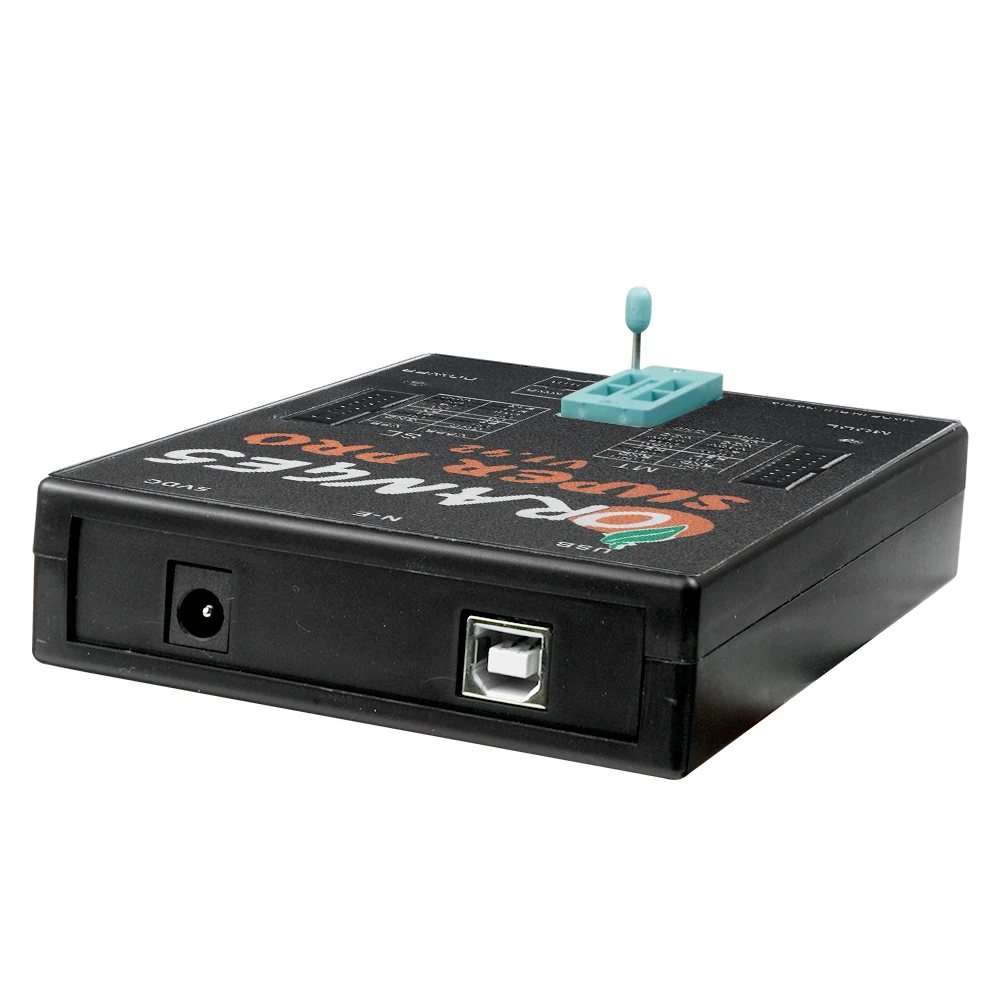

Orange5 Programmer Version V1.42 Orange 5 Super Pro Professional ECU Programming Device Activate Full Authorization
Orange5 Technical Info:
* USB power supply (USB2.0/3.0)
* Universal easy to plug panel ZIF16 for EEPROM
* Control of contacts in the sockets
* Two expansions compatible with Orange4 and Omega MTRK
* Protection against overcurrent
* Overload voltage protection
* Two types of power supply: Standard (USB) and enhanced (USB + external power supply)
* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
* High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
* Capability of functional emulation of class CDC USB devices
* Built-in 32-bit virtual machine
* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
* Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]
- Installation and Work with Orange-5 under Windows 7 and Windows 8.1
CnCterm - Terminal program for work with COM ports.
Features:
Supports any COM ports, including virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
"Echo" mode
Delay settings between incoming data
Management of DTR, RTS chains, visualising DSR, CTS, CD, RI
Program doesn't need to be installed
Supports Orange5 programmer in emulation mode.
Highlights:

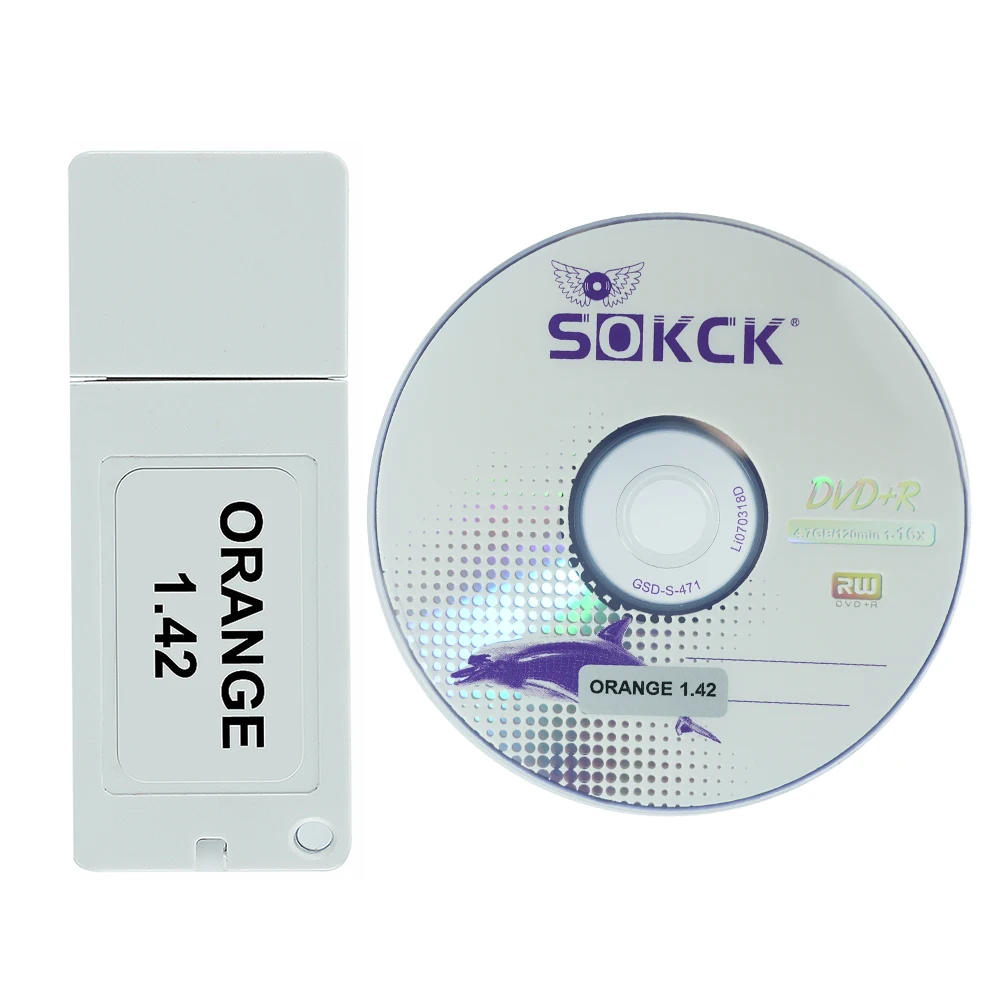

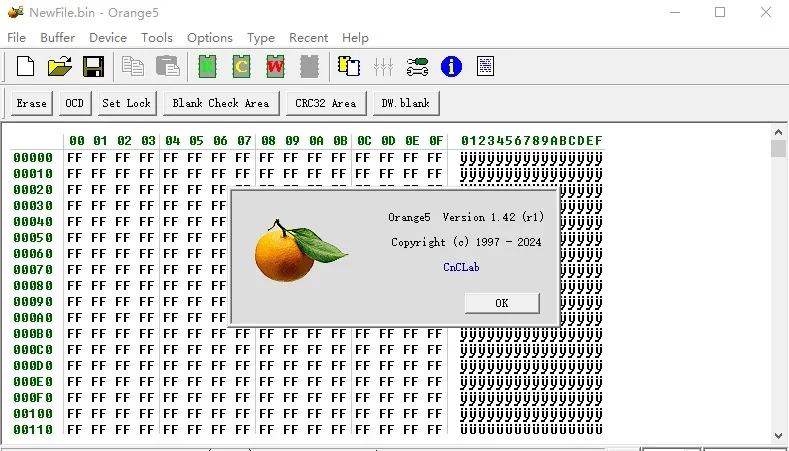

Software Version: V1.42, orange 5 super pro full function. Activate full Authorizations
Language:English,Russian
it can do ECU Programmer ,Key Progrmmer,km correction ,immo pin ,srs reset
NOTE: Orange5 cannot work on Win10 and Win11, requires Win7 !!!

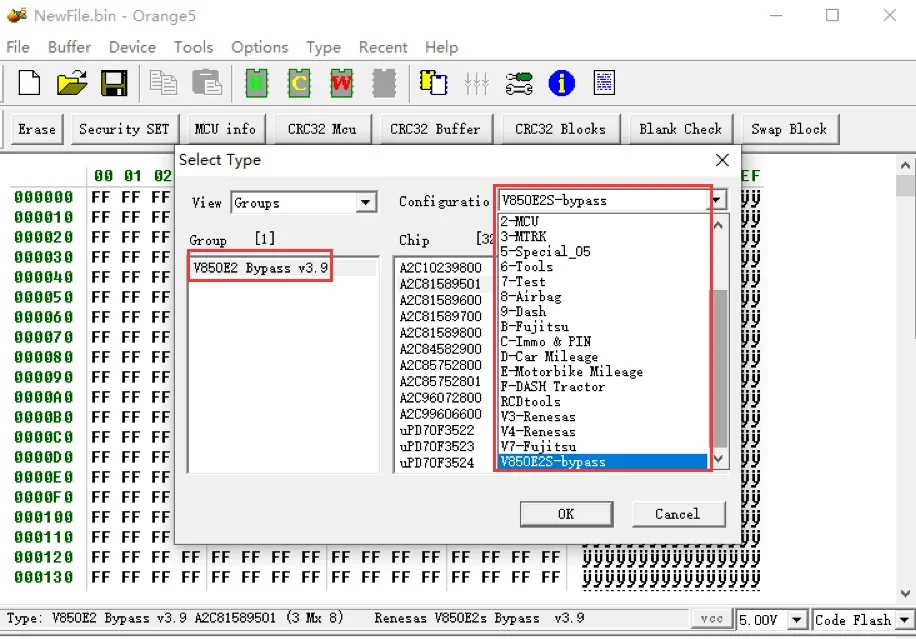

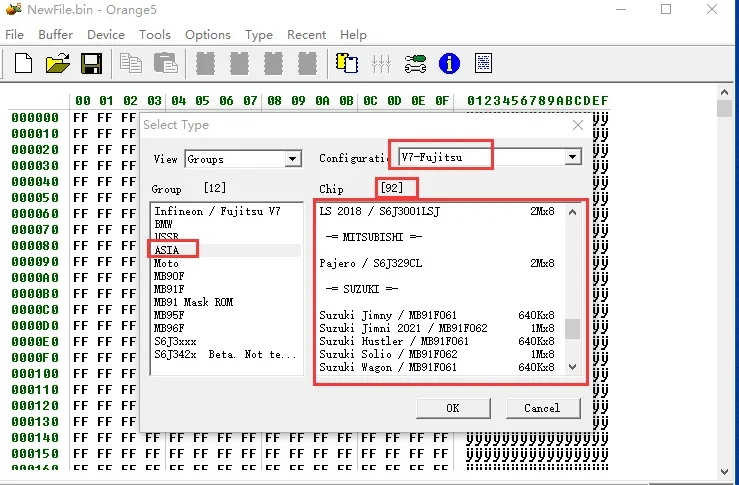

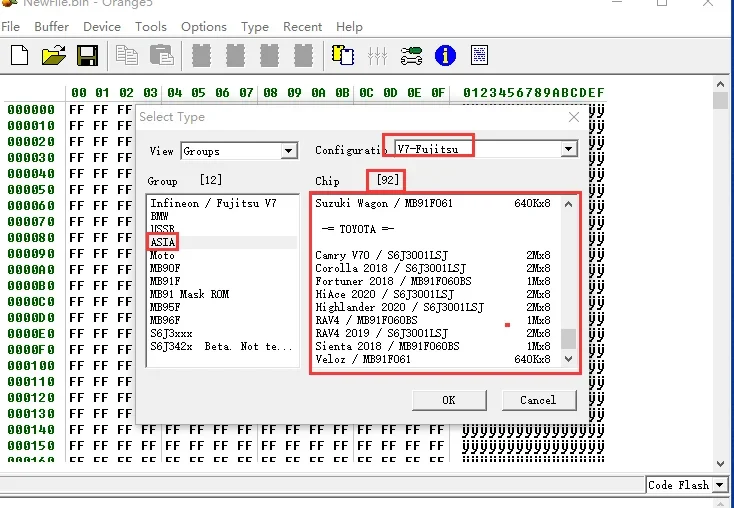

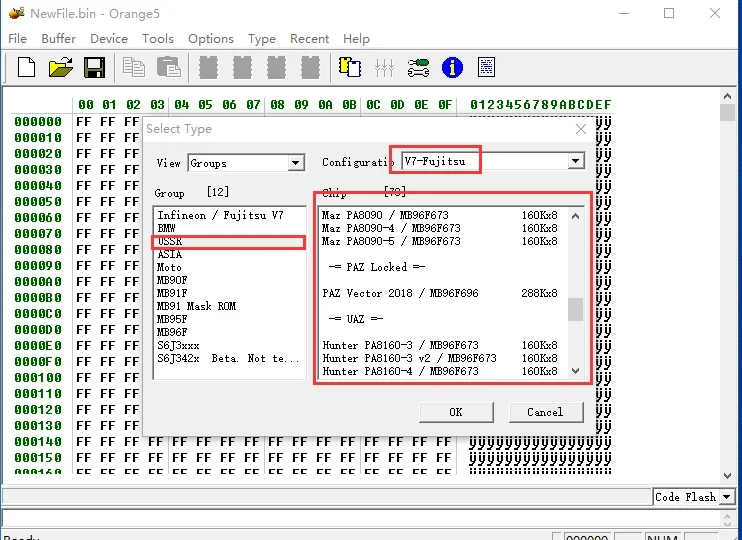

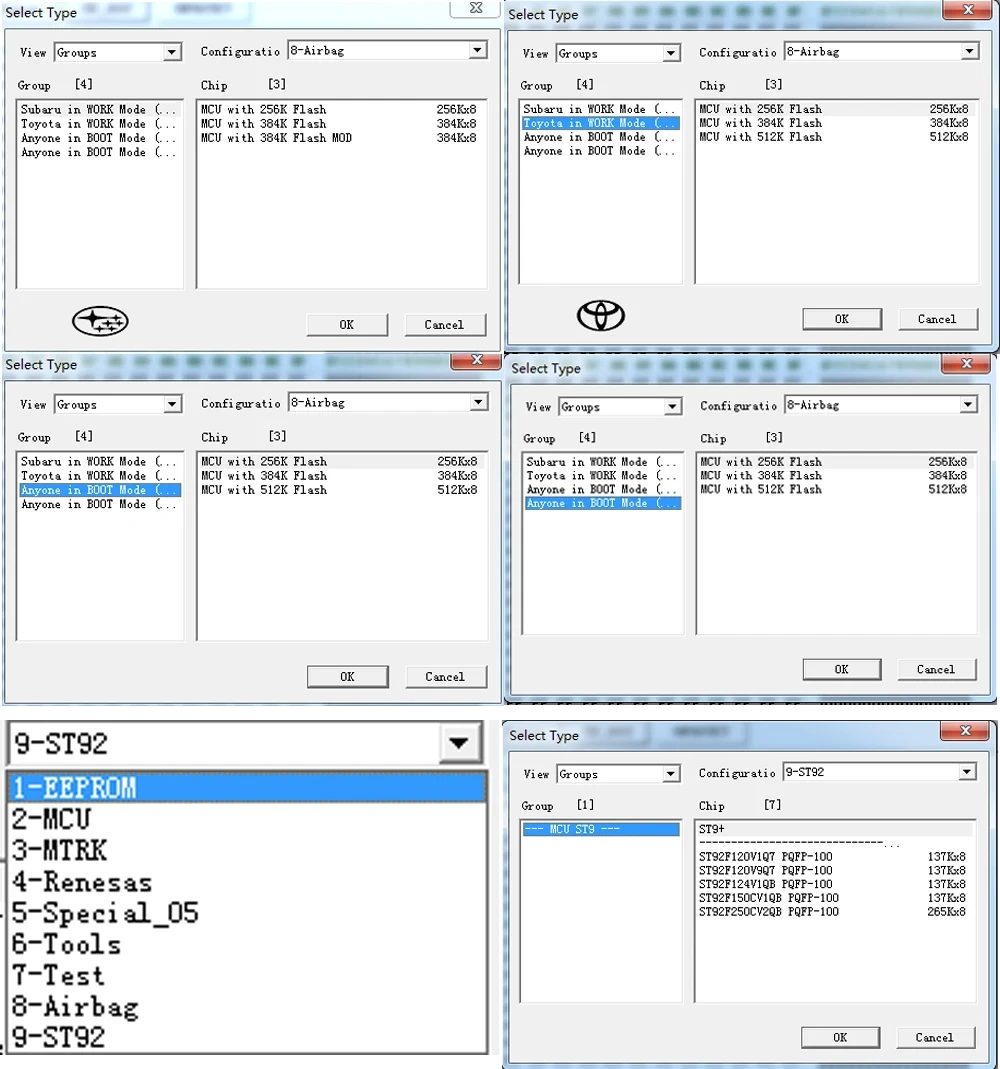

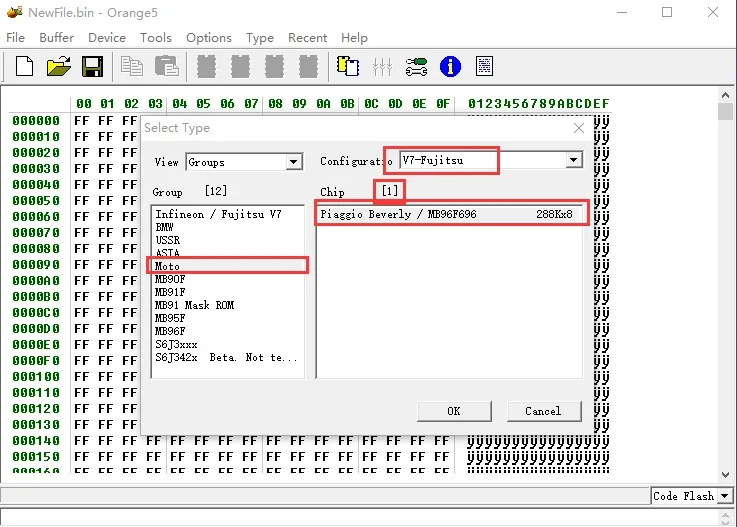

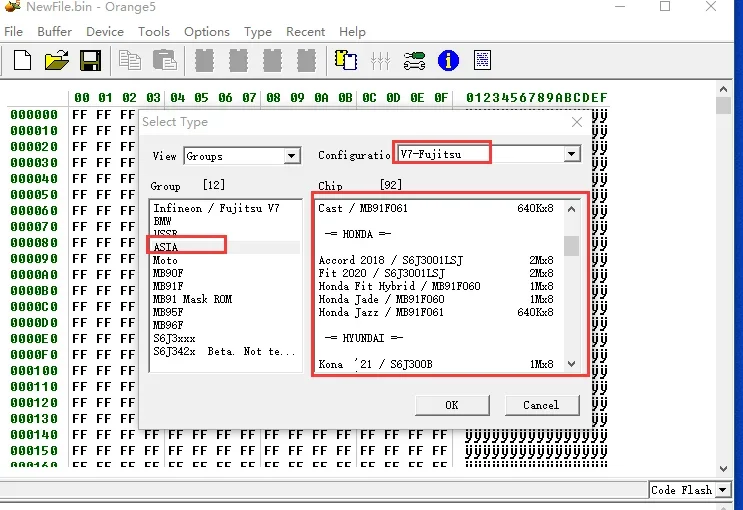

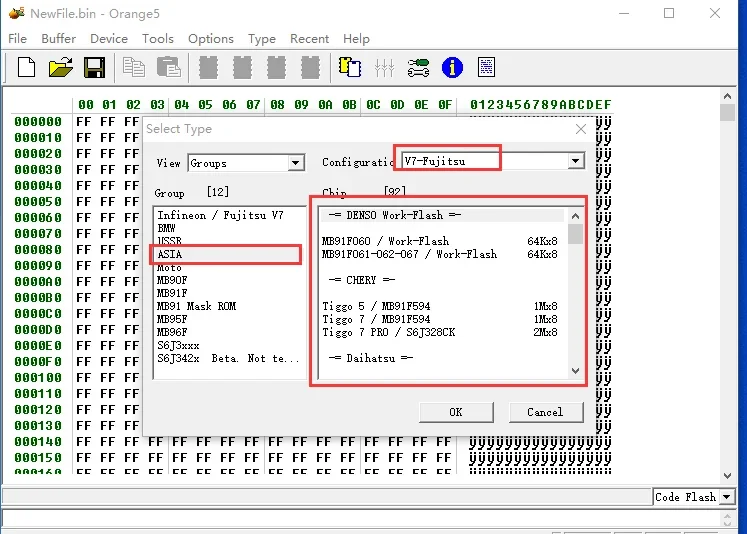

Adds More Ecu Mcu List Program:

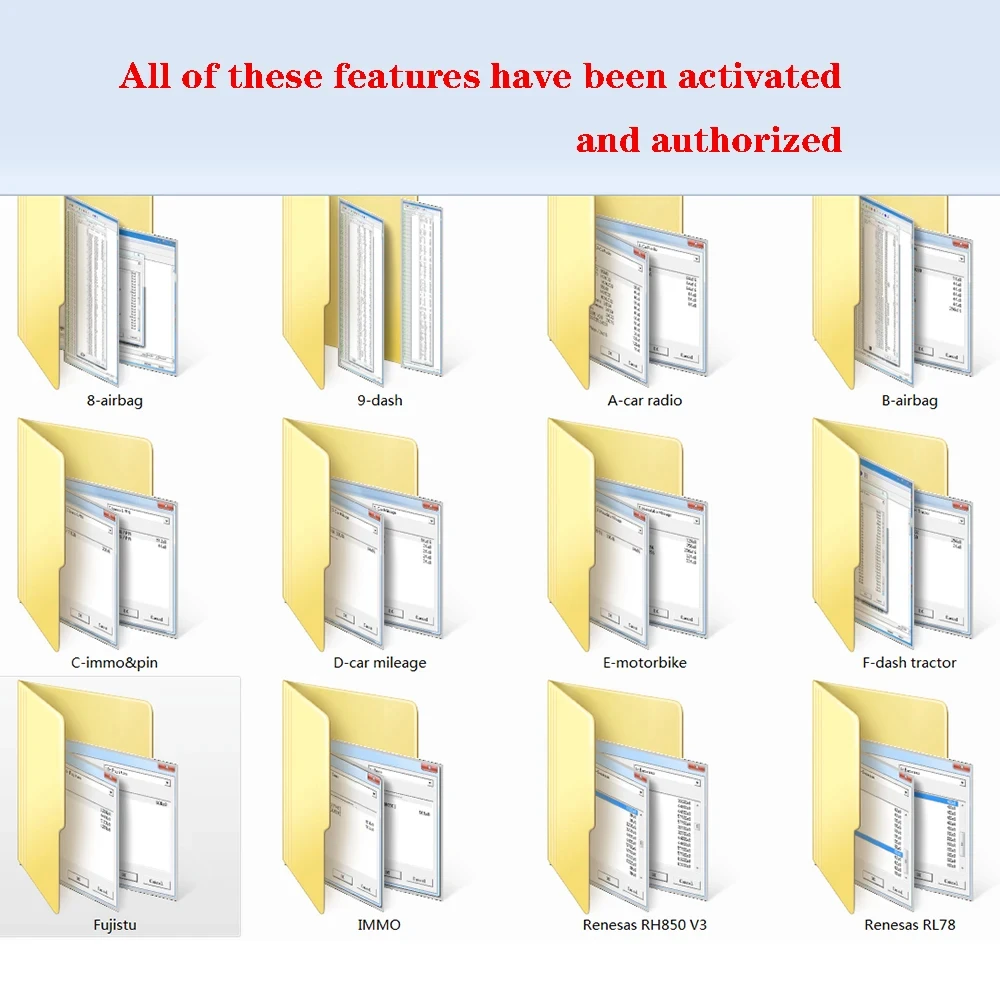

Activate Full Authorizations:

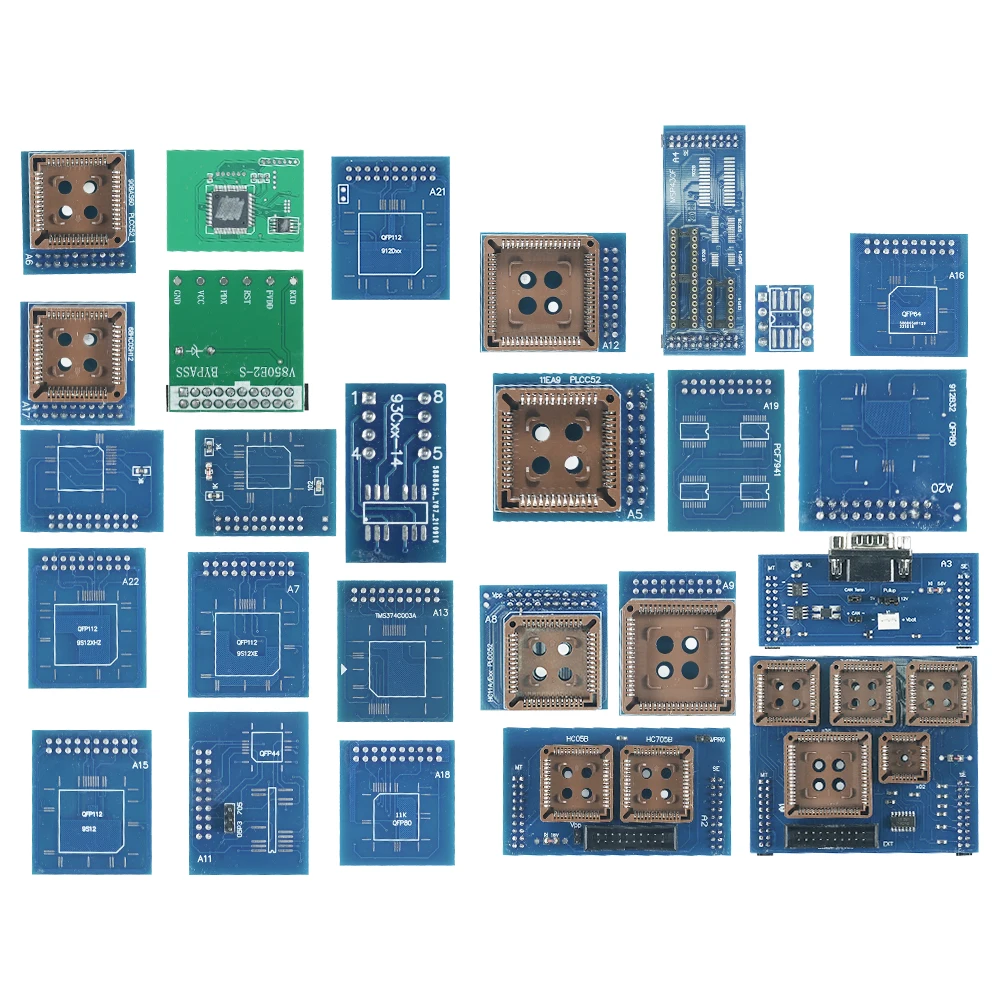

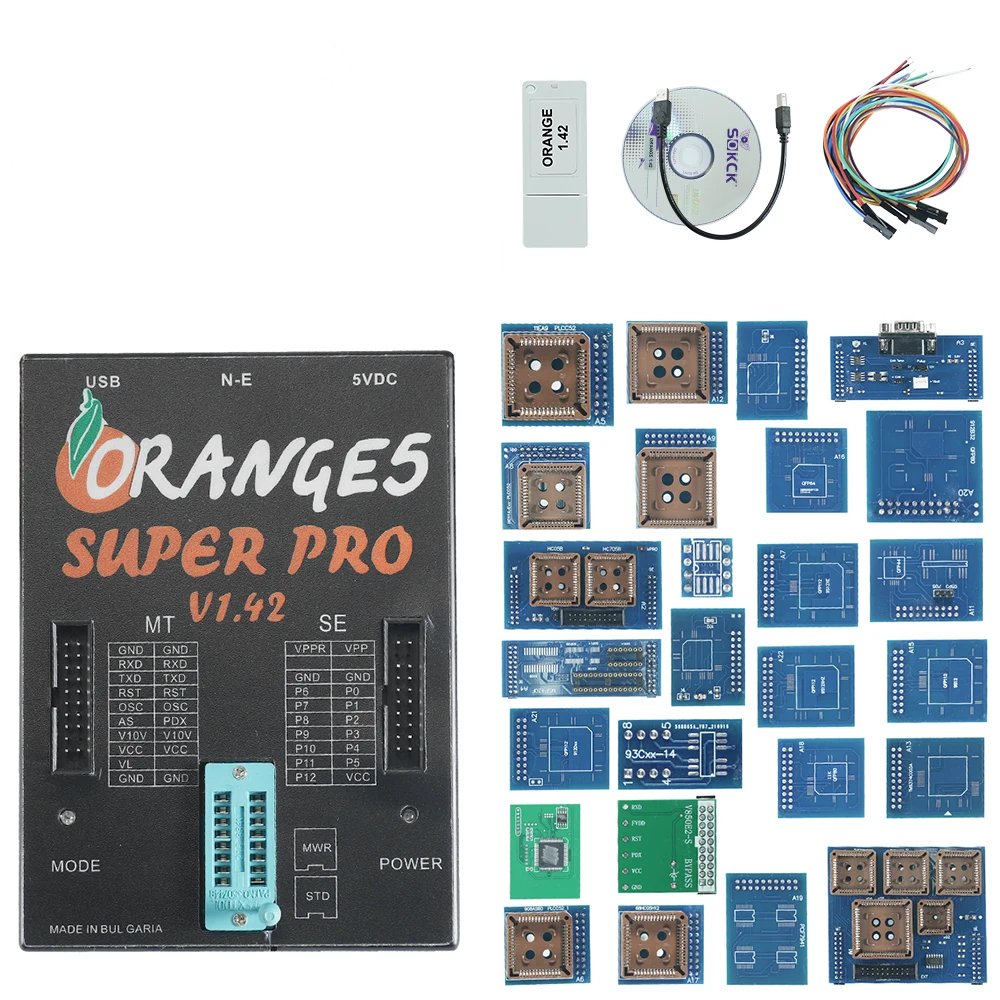

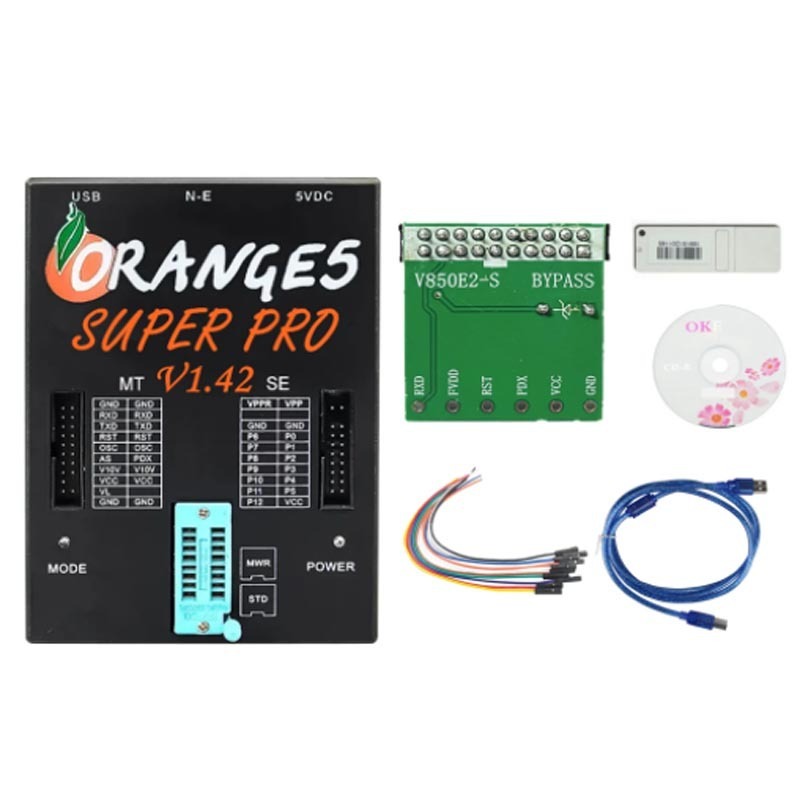

Packing List:
1 x Orange 5 Programmer
1x SOIC8/DIP8 Expert adapter
1 x SSOP8/DIP8
1 x SOIC8/DIP8 adapter
1 x SOIC8_14_93Cxx adapter

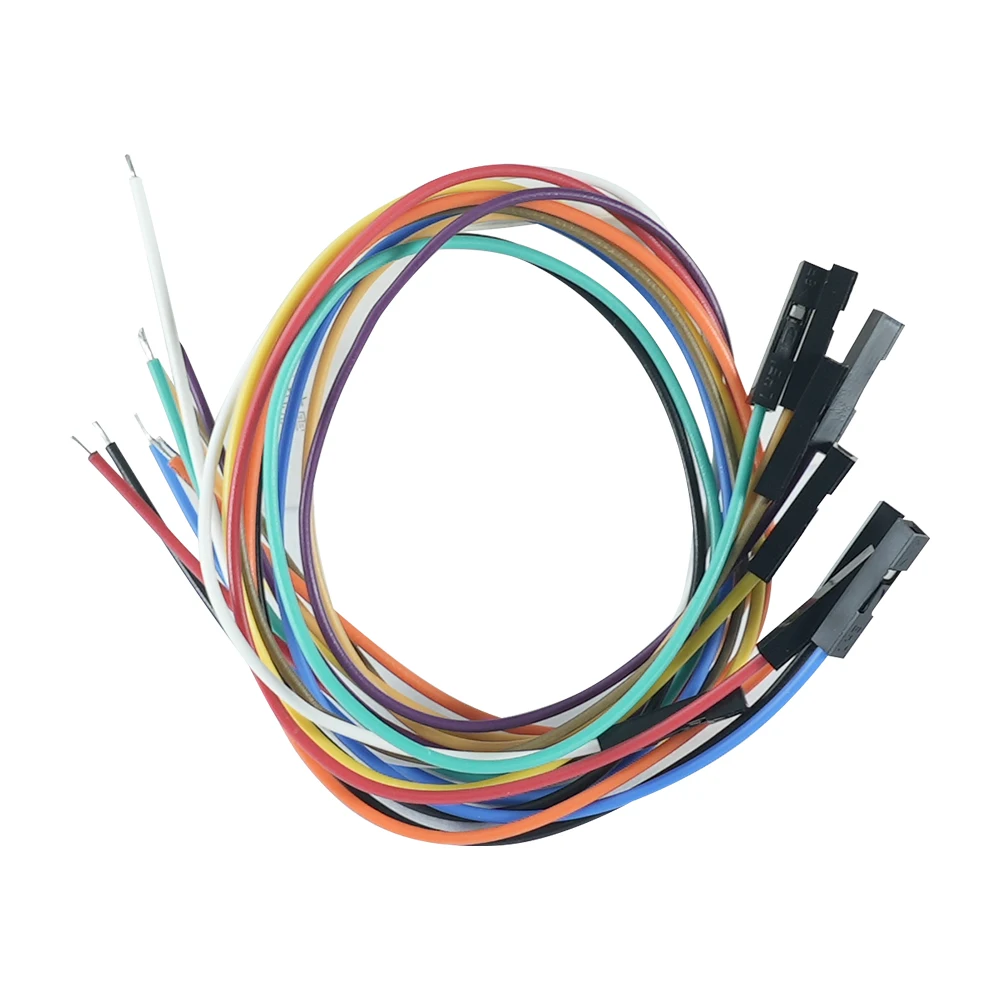

1 x Lead 11E9(20) with power
1 x Adapter 05L28/05B
1 x Adapter 908AS60/AZ60 QFP64
1 x Adapter 68HC(7)05P3/E6
1 x Adapter 05B/X_705B/X QFP64 V2
1 x Adapter 11PA8/11E9 QFP64
1 x Adapter 68HC05H12
1 x Adapter 68HC11EA9
1 x Adapter 908AS60
1 x Adapter 9S12Dxx
1 x Adapter 912Dxx
1 x Adapter 9S12X
1 x Adapter 912B32 QFP80
1 x Adapter 68HC11F1
1 x Adapter 68HC11L6
1 x Adapter 68HC11KA4
1 x Adapter 9S12XE
1 x Adapter PCF7941
1 x Adapter TMS374C003A
1 x Adapter MSP430F
1 x Adapter 68HC11KA4 PLCC68
1 x Adapter 908JL

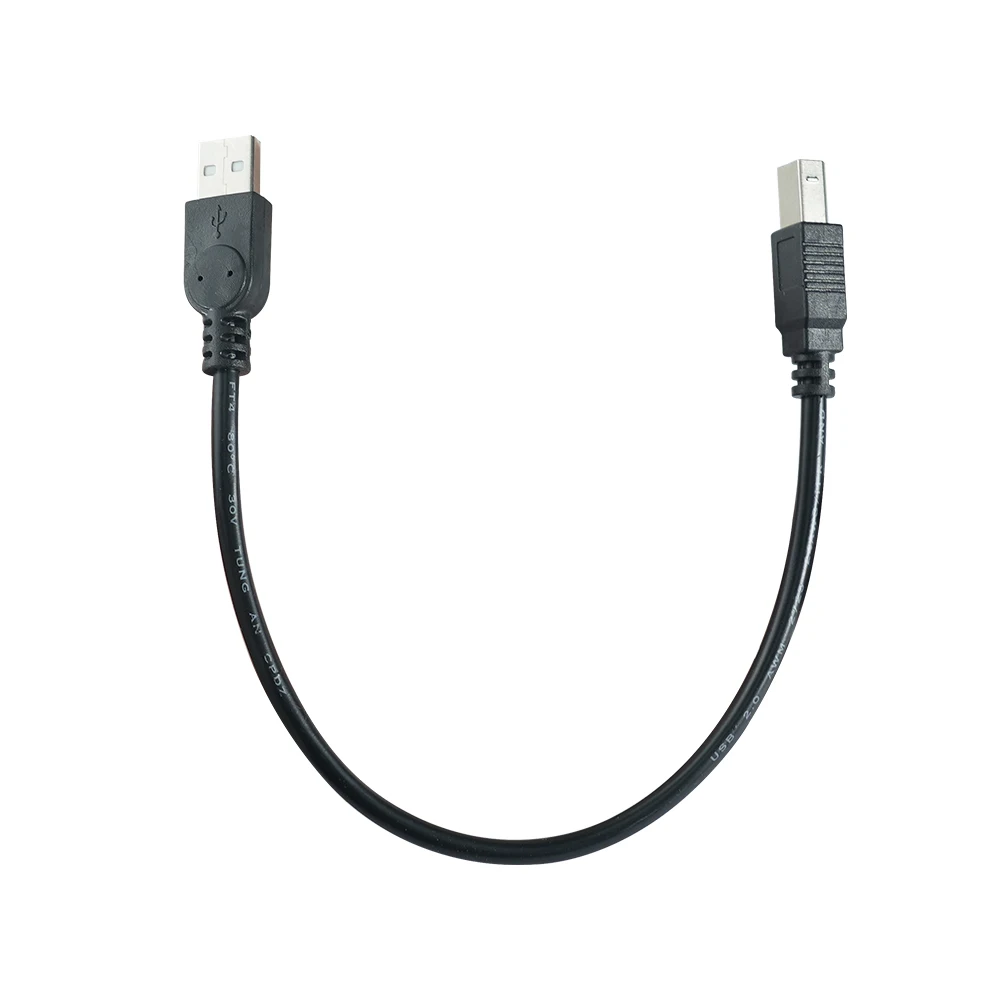

1x USB cable
