KONNWEI KW470 OBD2 Professional Diagnostic Tool for Ford Series
SKU:

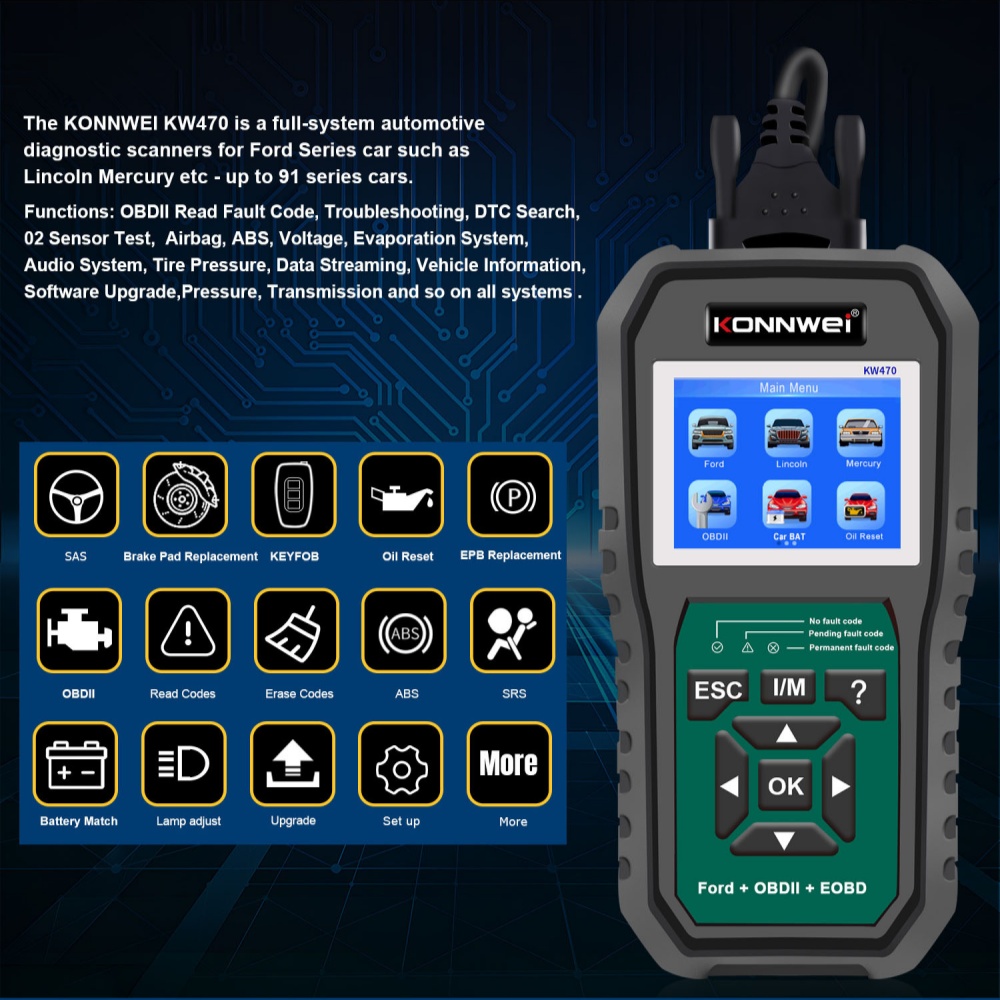

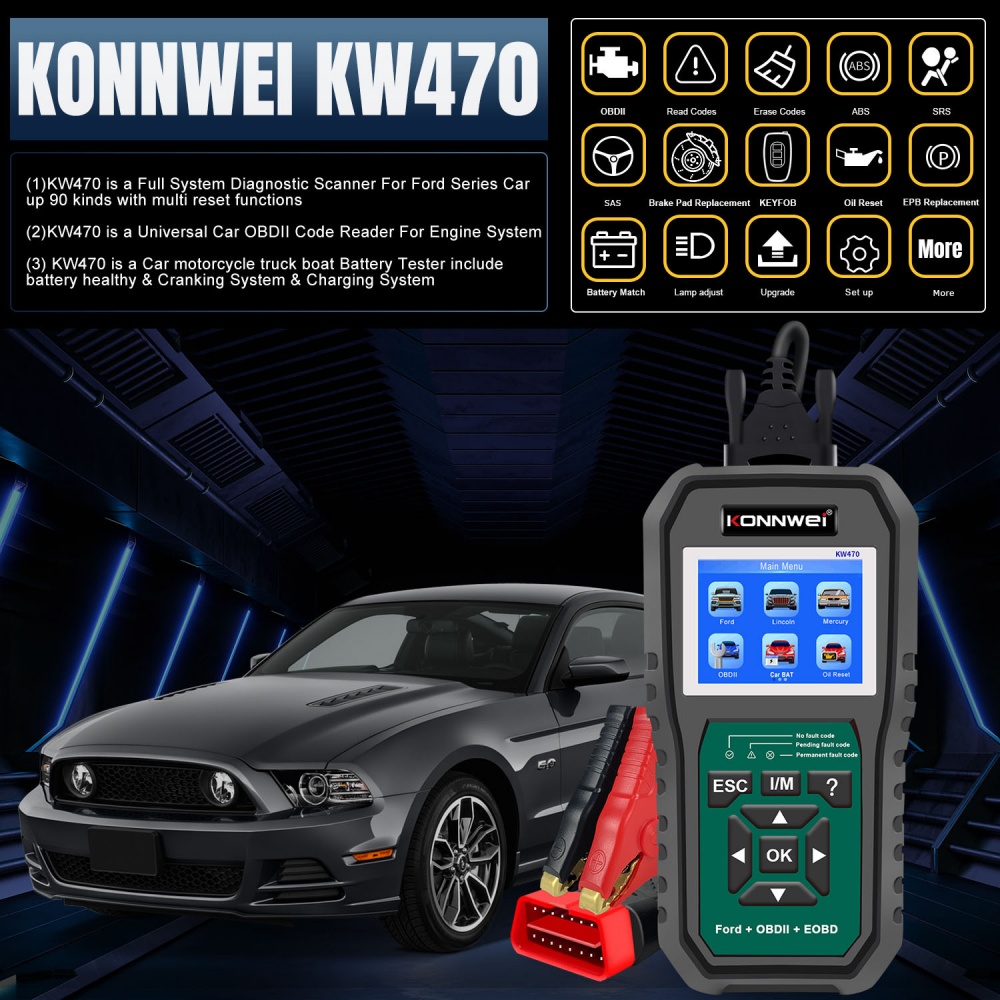

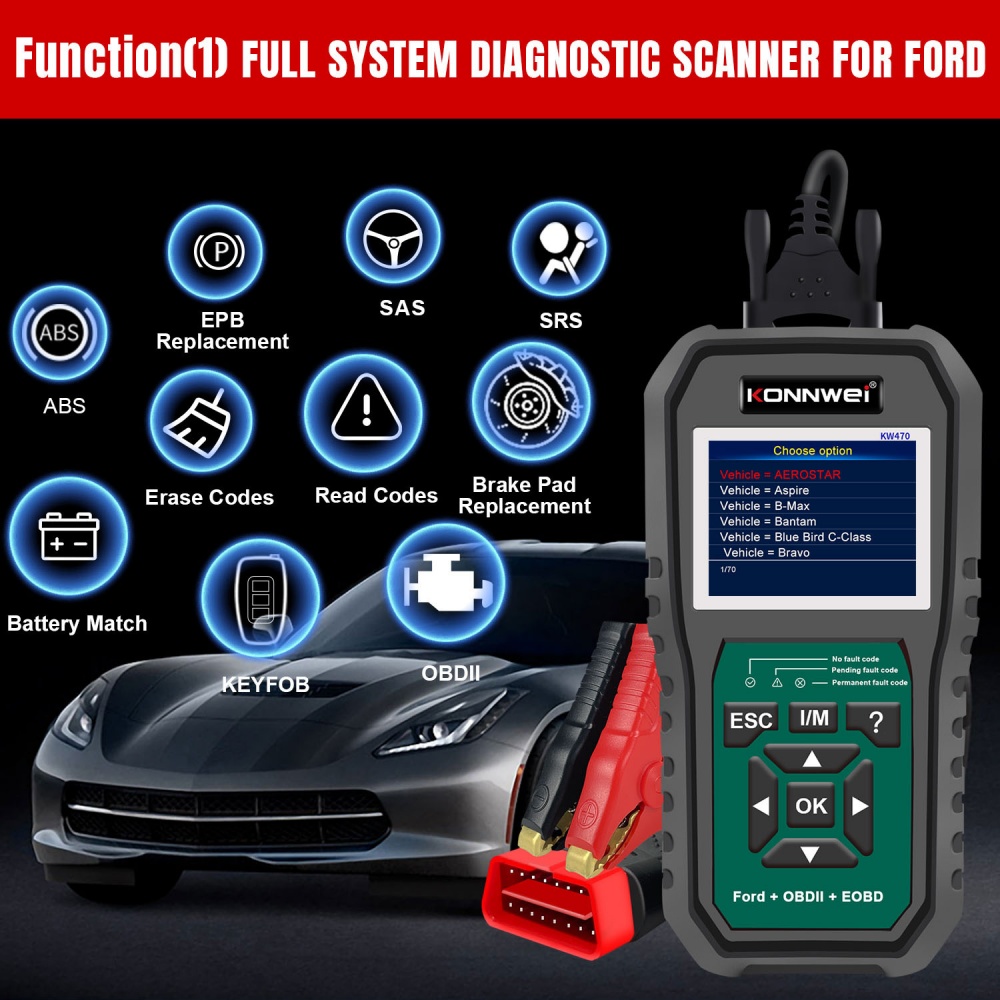

KONNWEI KW470 is a professional full system diagnostic scanner for Ford series car. It supports all system diagnostics, includingengine light, ABS, SRS,Transmission, SAS, ESP, EPB and other systems.
KONNWEI KW470 OBD2 Professional Diagnostic Tool for Ford Series

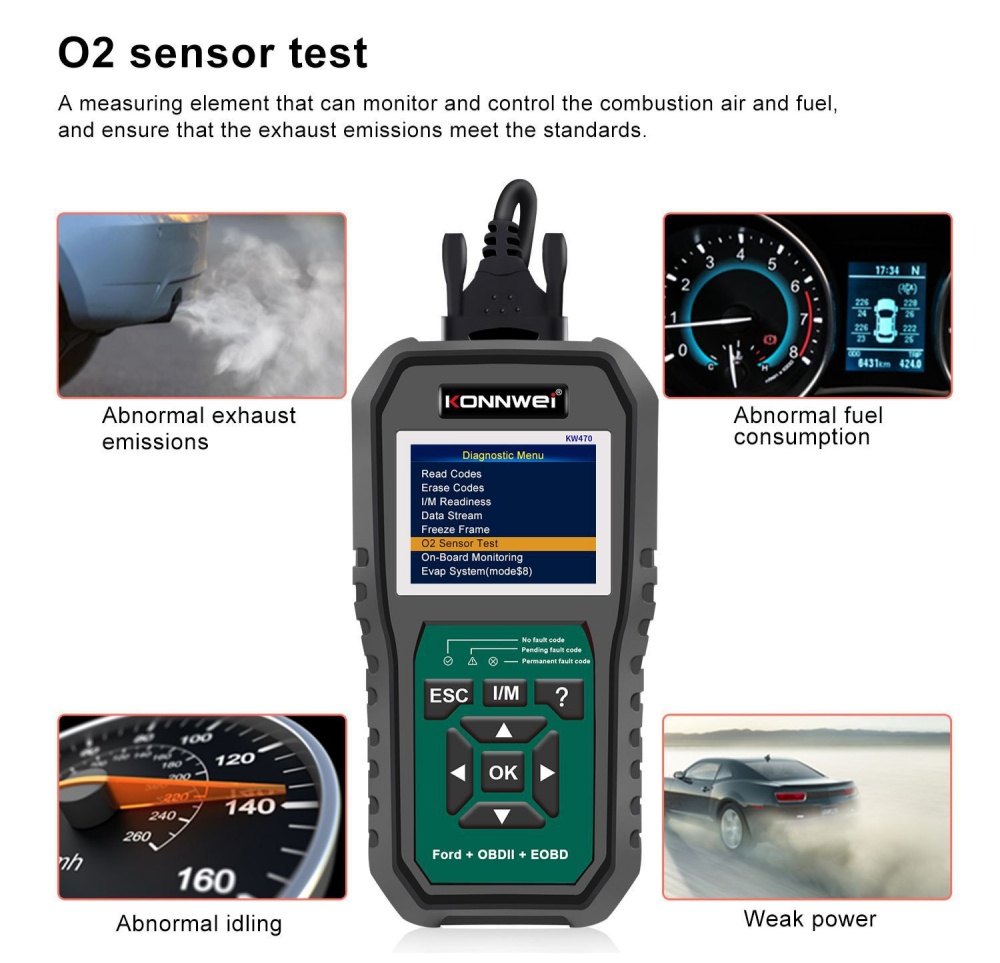

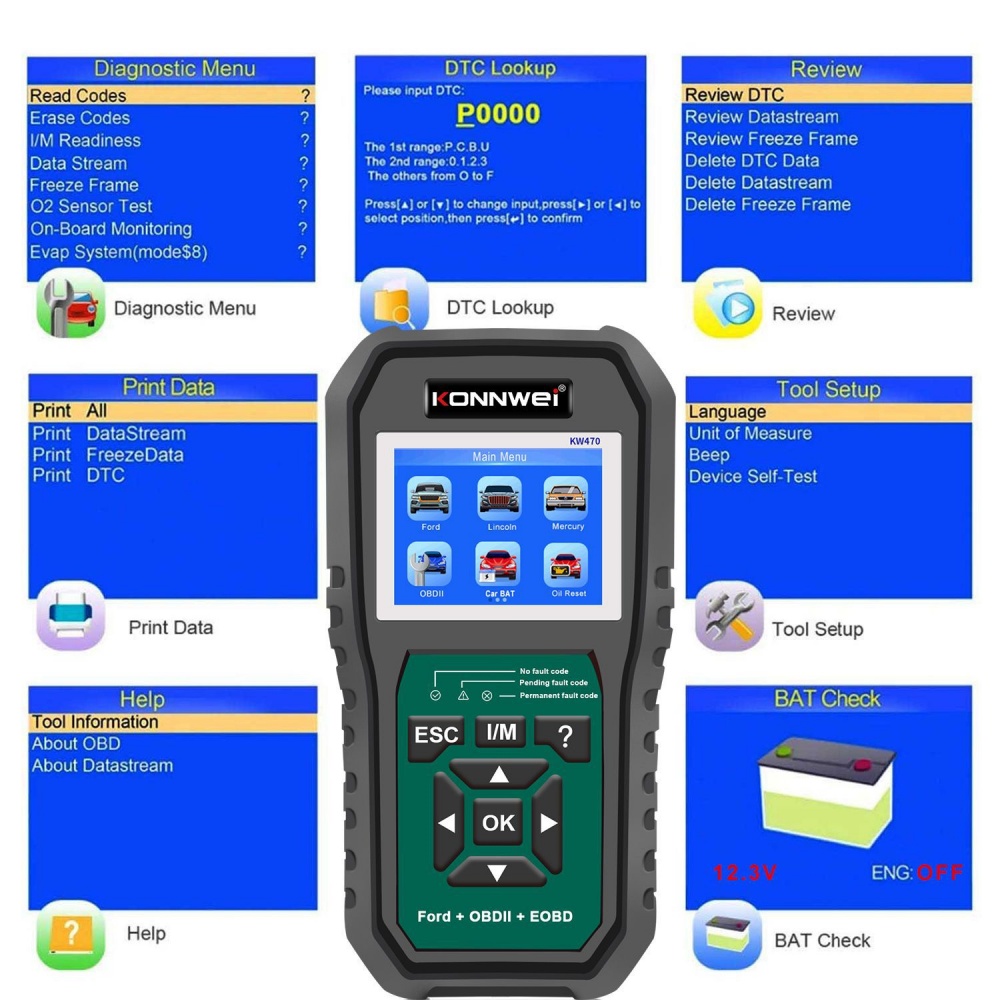

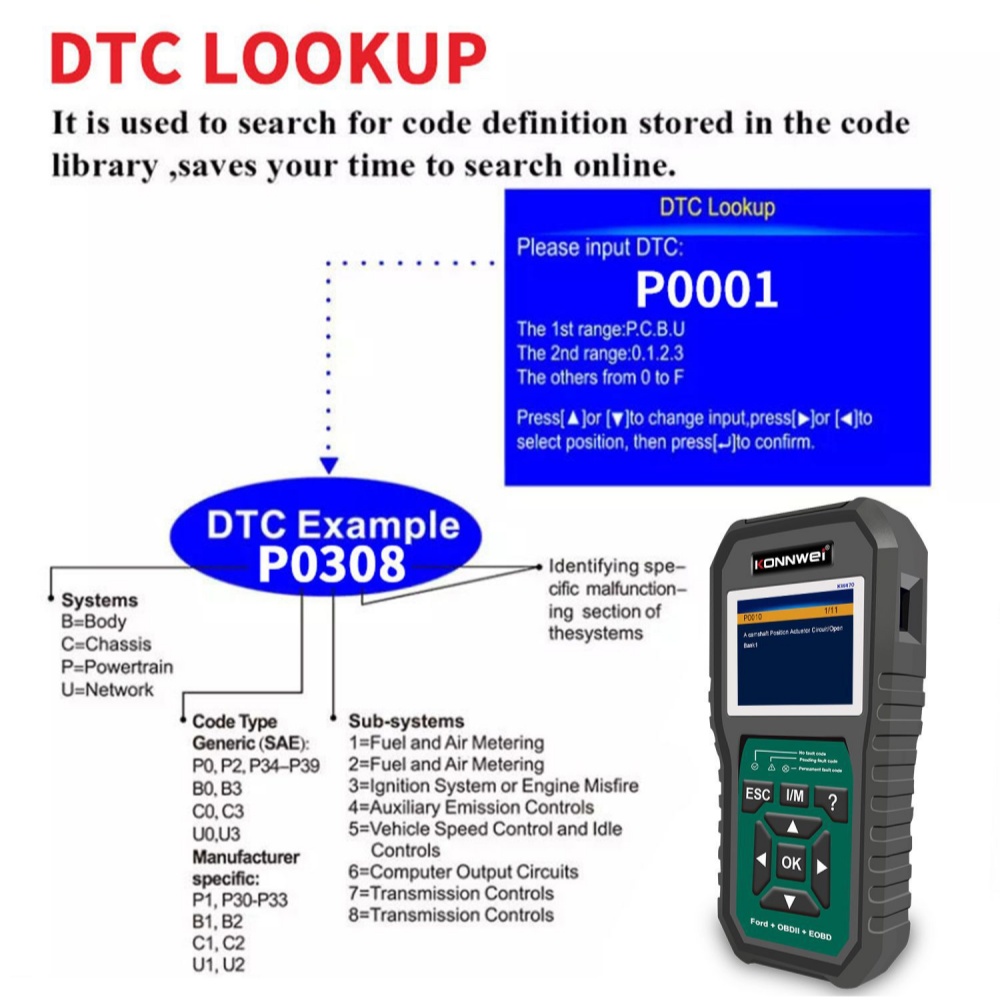

The KW470 car diagnostic tool supports all OBDII functions, including reading and clearing the engine trouble code. Search library with integrated error code definition; Read live PCM data stream into text or graphics; surveillance on board; I/M readiness indicator; Oxygen sensor and evaporative control system test; retrieve VIN information; Review and print data. It has the features that other obd readers should have! Equipped with multi special functions such as oil servicereset, oil reset, EPB (Electrical Park Brake) reset, battery adjustment and so on for Ford Series cars. It is used for Ford Series car such as AEROSTAR, Aspire, B-Max, Bantam, Blue Bird C-Class Vision, Bravo, Bronco, C-MAX, Cargo, CF/LCF, Contour, Corsair, Courier, Crown Victoria, E-series, Econovan, EcoSport, Edge, Endeavour, Escape, Escort, Everest, Excursion, Expedition, Expedition EL, Explorer, Explorer Sport, Sport Trac, F Series150/250/350/450/550/650/750, Fairlane)/LTD, Fairmont, Falcon, Festiva, Festiva Sedan, Fiesta, Figo, Five Hundred, Flex, Focus, Focus convertible top-sedan, (Focus)C-MAX, Ford GT, Freestar, Freestyle, Fusion,Galaxy, Granada, Ikon, KAminicar, Kuga, Mach-E, Maverick, Mondeo, Motorhome, Mustang, Puma, Ranger, S-Max, Scorpio, Step Van, Detachable-chassis-box-car, Taurus, TaurusX, Territory, Thunderbird, Transit, Transit Connect, Troller, Windstar, Aviator, Blackwood, Continental, LS, Ford Mark VIII, MarkLT Premium Pickup, MKC, MKS, MKT, MKZ, ZMKX, Nautilus, Navigator, TownCar, Zephyr, Cougar, Grand Marquis, Marauder, Mariner, Milan, Montego, Monterey, Mountaineer, Mystique, Sable,Tracer, Villager and so on. This function is specially designed to diagnose the 101 electronic control systems of a single vehicle Model.

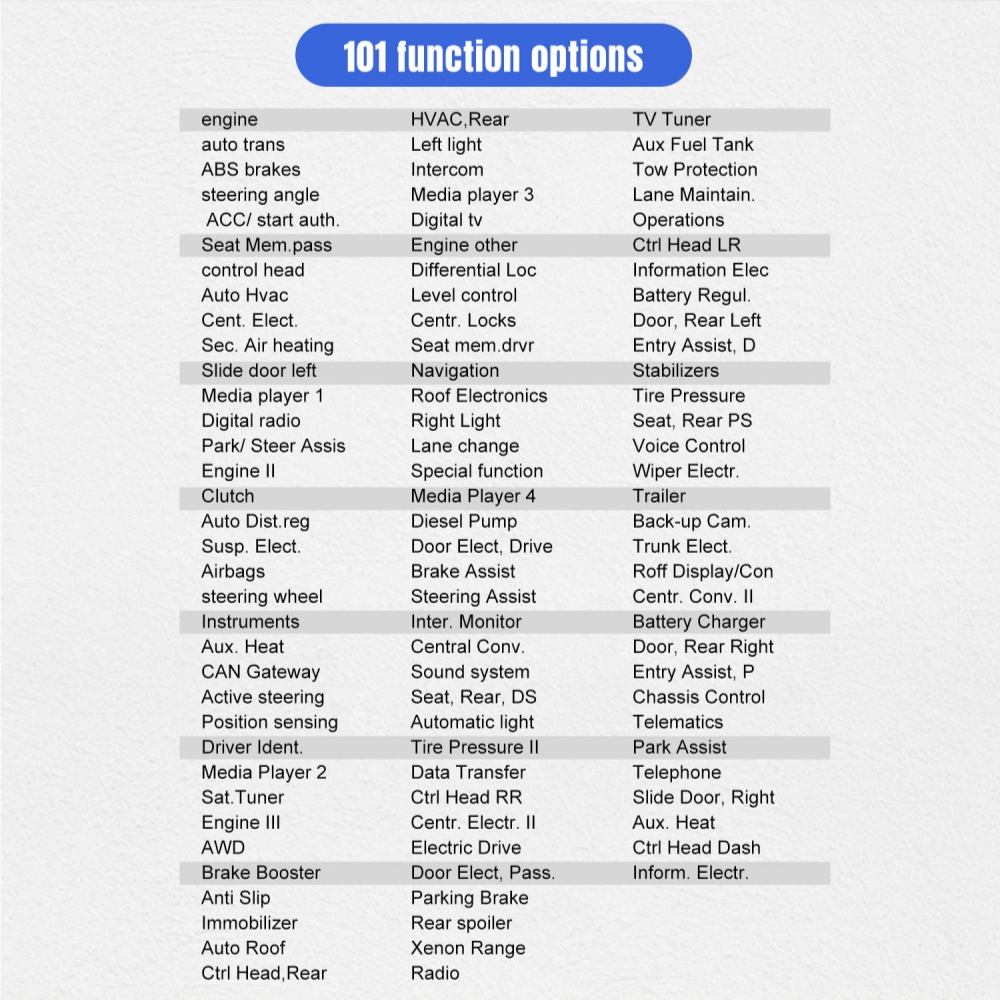

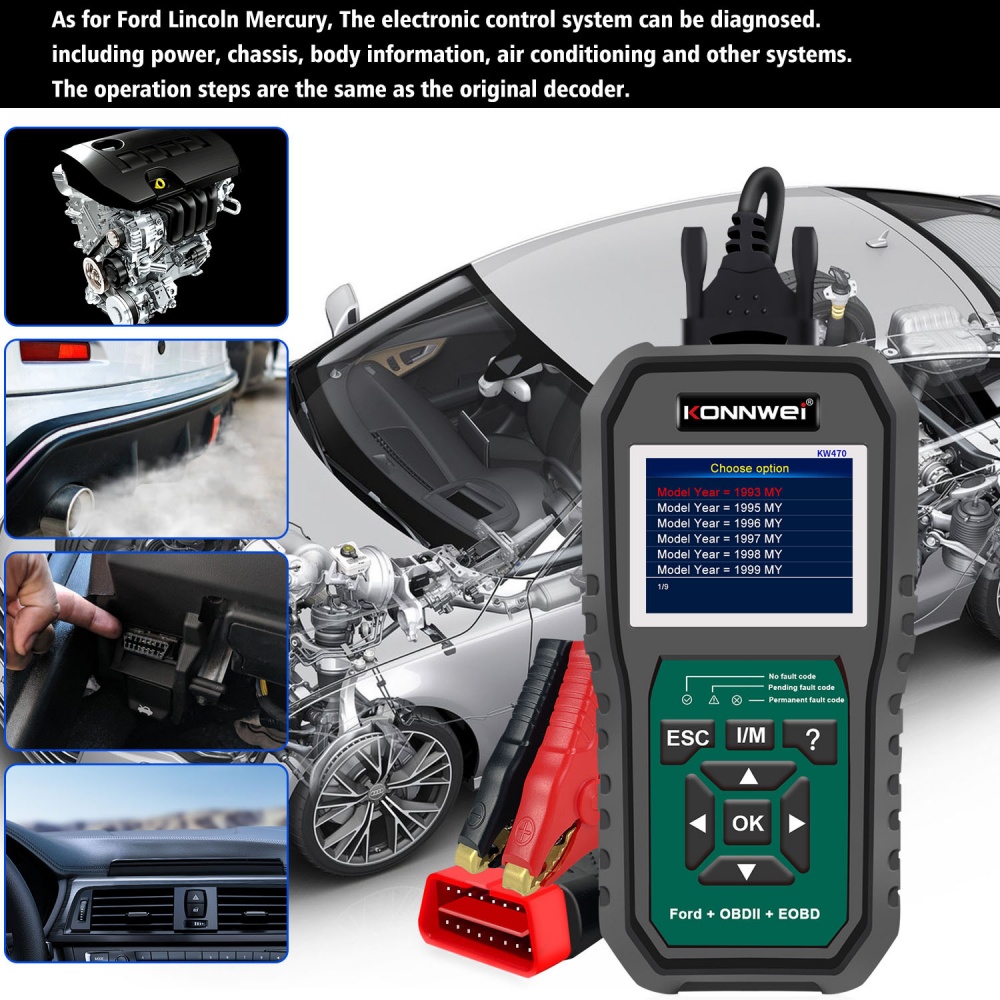

Common control unit This function is a common control system fault code , data stream and version reading, and clear fault code. All control unit This function is all control system fault code , data stream and version reading, and clear fault code. System control unit This function is to scan the common system one by one and read if there is a fault and display Gateway scan This gateway can quickly scan the ECU of the vehicle (some vehicles have their own gateway system, tool can get the ECU information of the vehicle by talking with the gateway which ECU is supported and whether there are a fault)

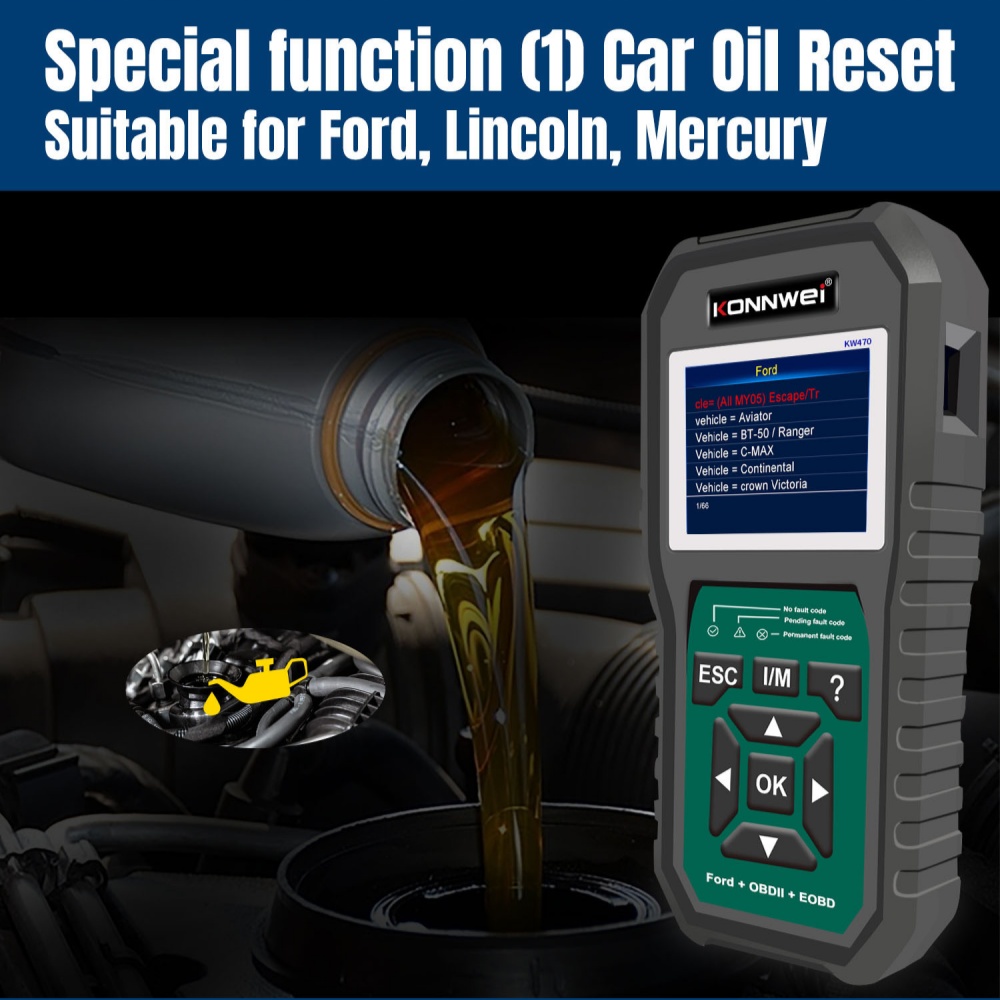

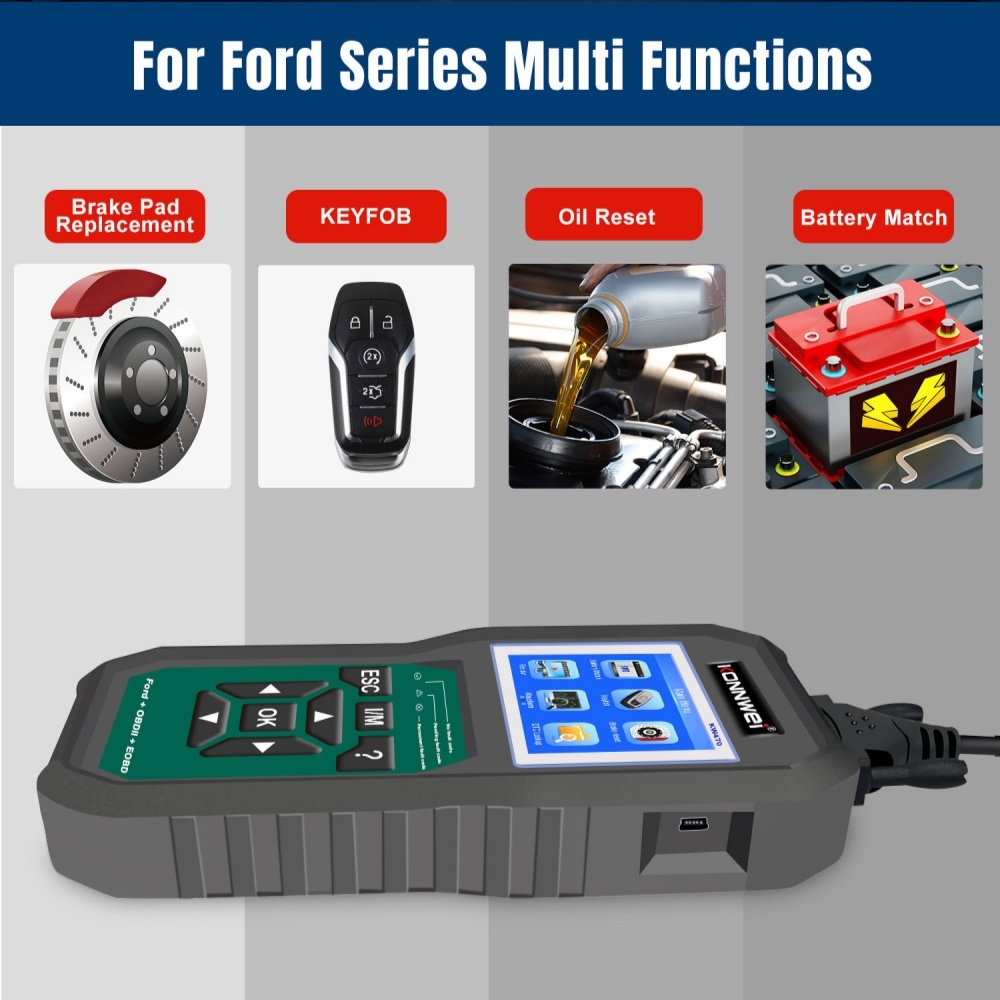

Special functions for Ford cars (1) Oil Reset This function allows you to perform reset for the engine oil life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate. This function can be performed in the following cases: 1. If the service lamp is on, you must provide service for the car. After service, you need to reset the driving mileage or driving time so that the service lamp turns offff and the system enables the new service cycle. 2. After changing engine oil or electric appliances that monitor oil life. You need to reset the service lamp.

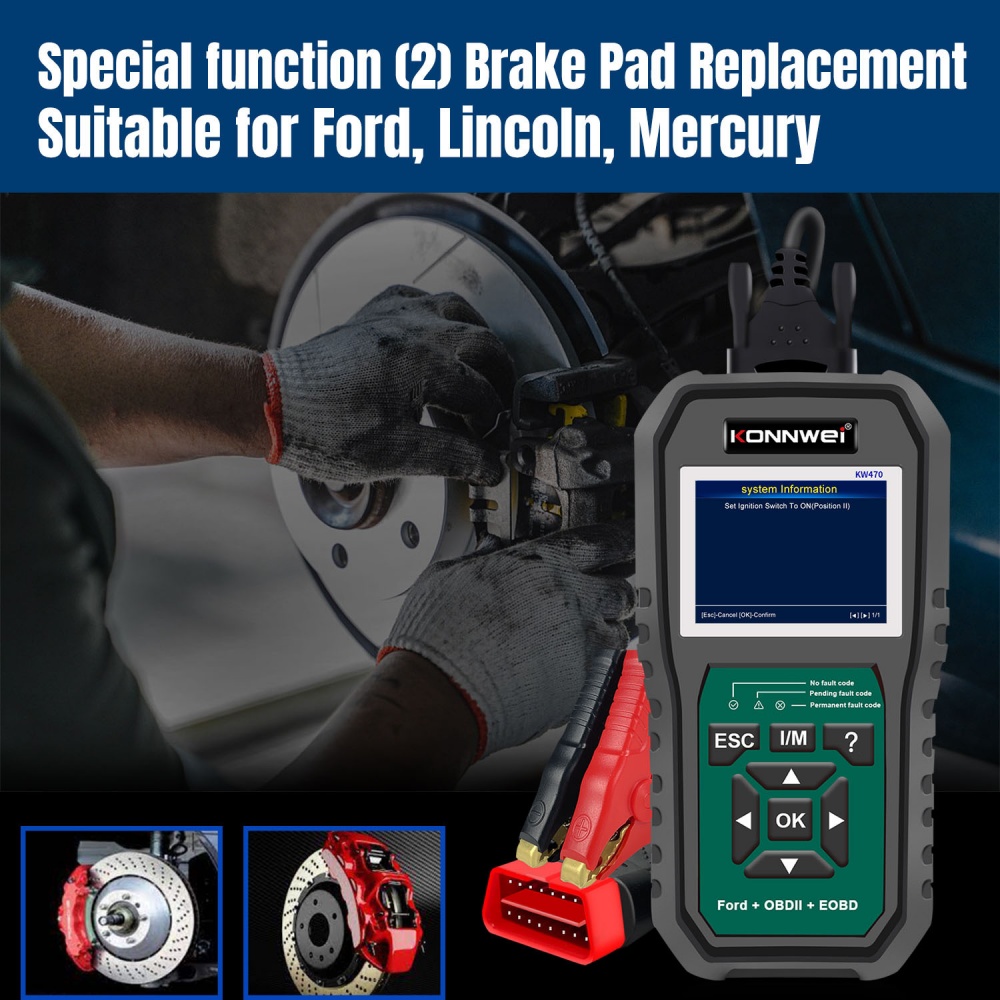

(2 ) EPB Replacement 1. If the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad. After replacing the brake pad, you must reset the brake pad. Otherwise, the car alarms. 2. Reset must be performed in the following cases: a) The brake pad and brake pad wear sensor are replaced. b) The brake pad indicator lamp is on. c) The brake pad sensor circuit is short, which is recovered. d) The servo motor is replaced.

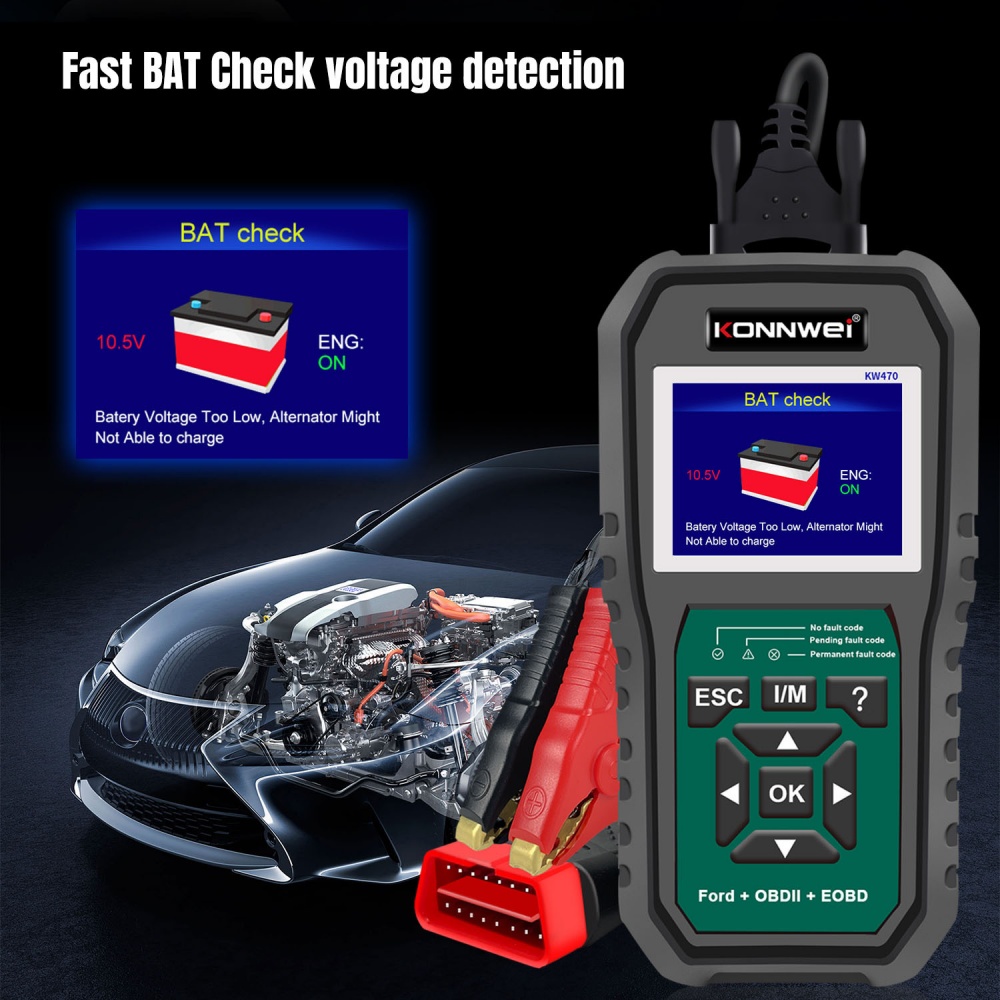

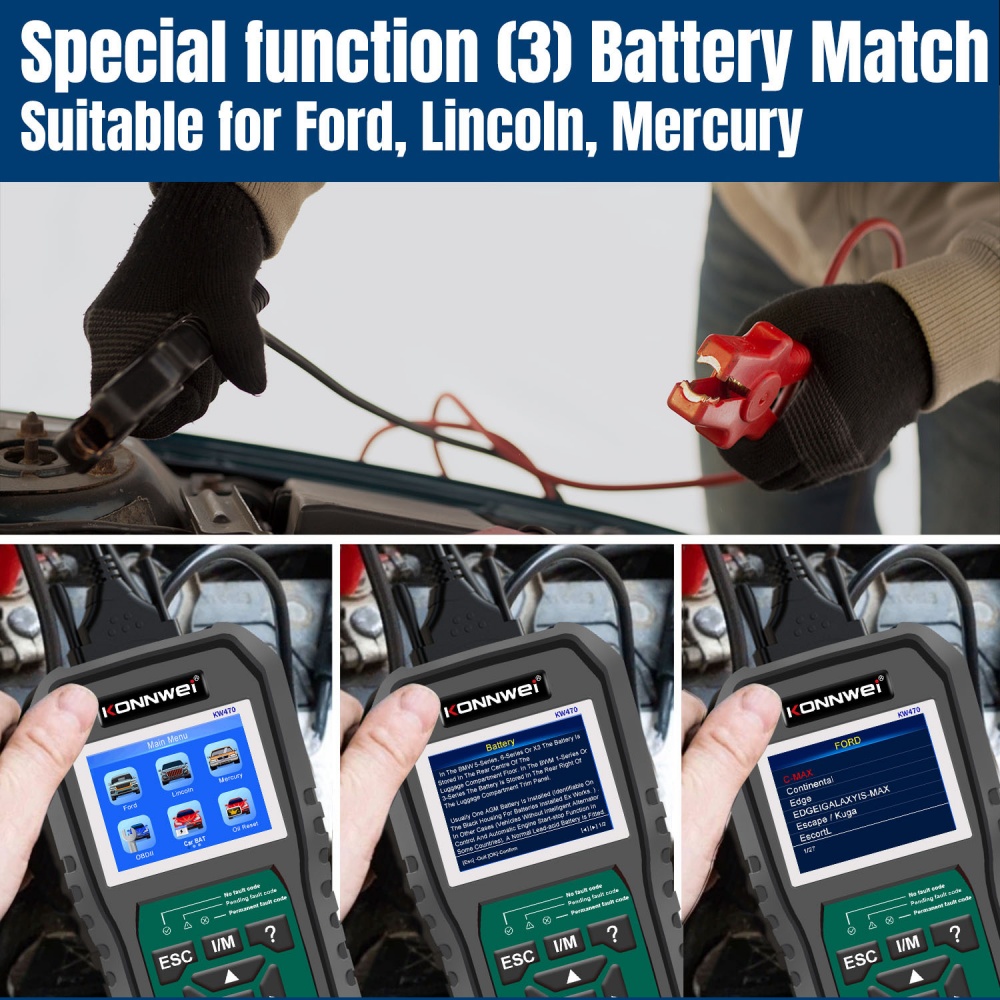

(3 ) BAT Match This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done. Battery matching must be performed in the following cases: a) The main battery is replaced. Battery matching must be performed to clear original low battery information and prevent the related control module from detecting false information. If the related control module detects false information, it will invalidate some electric auxiliary functions, such as automatic start & stop function, sunroof without one-key trigger function, power window without automatic function.
b)Battery monitoring sensor. Battery matching is performed to re-match the control module and motoring sensor to detect battery power usage more accurately, which can avoid an error message displaying on the instrument panel.

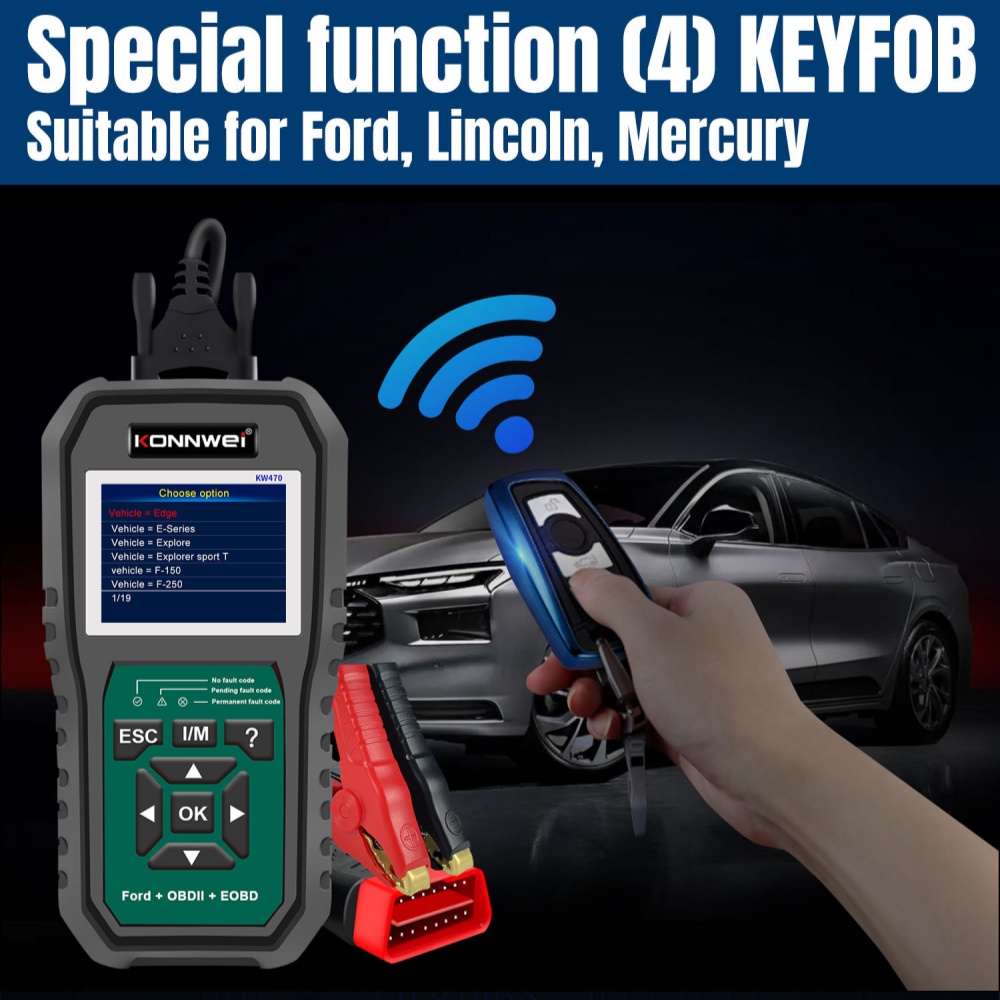

(4 ) KEYFOB A key fob is the small handheld remote control device that controls a remote keyless entry system. When you press the button on your keys and hear the comforting chirp of your car’s unlocking mechanism, you can thank the humble but mighty key fob. But there’s a lot more to key fob technology than you might realize.
Key fobs are the perfect example of a technology that many people use constantly but don’t give much thought to. These tiny handheld devices have been revolutionary for the development of remote keyless entry systems, automotive and otherwise, and all it takes is a few minutes of losing yours to realize how important key fobs are for many people’s lifestyles.
KEY FOB is available-for-Edge,-E-series, Explorer, Sport Trac, F-150, F-250, F250-550 Series Heavy Duty Trucks,500 (Five Hundred), Focus 2008-2011, Freestar 2003-2007, Freestyle 2005-2007, Mustang 2007-2009, Mondeo 2015, Mondeo 2011, Ranger 2006-2011, Taurus 2006-2007, Transit-Connect-2010-2011, Mark-LT-2006-2008, Navigator 1999-2006, Navigator 2007-2008,Town-Car 2004-2009，More cars will be available sooner later.
(5) More special Reset Function.

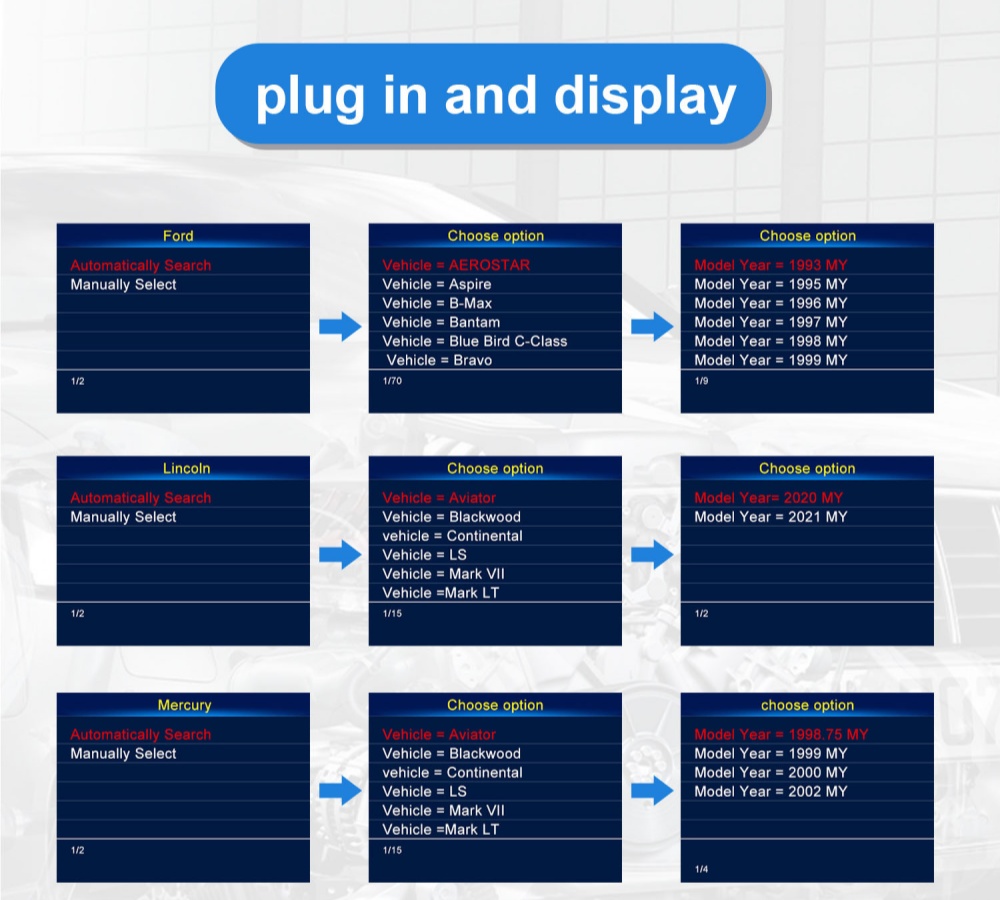

Application: 1) Full sytem is suitable for vehicles: For Ford For Lincoln For Mercury

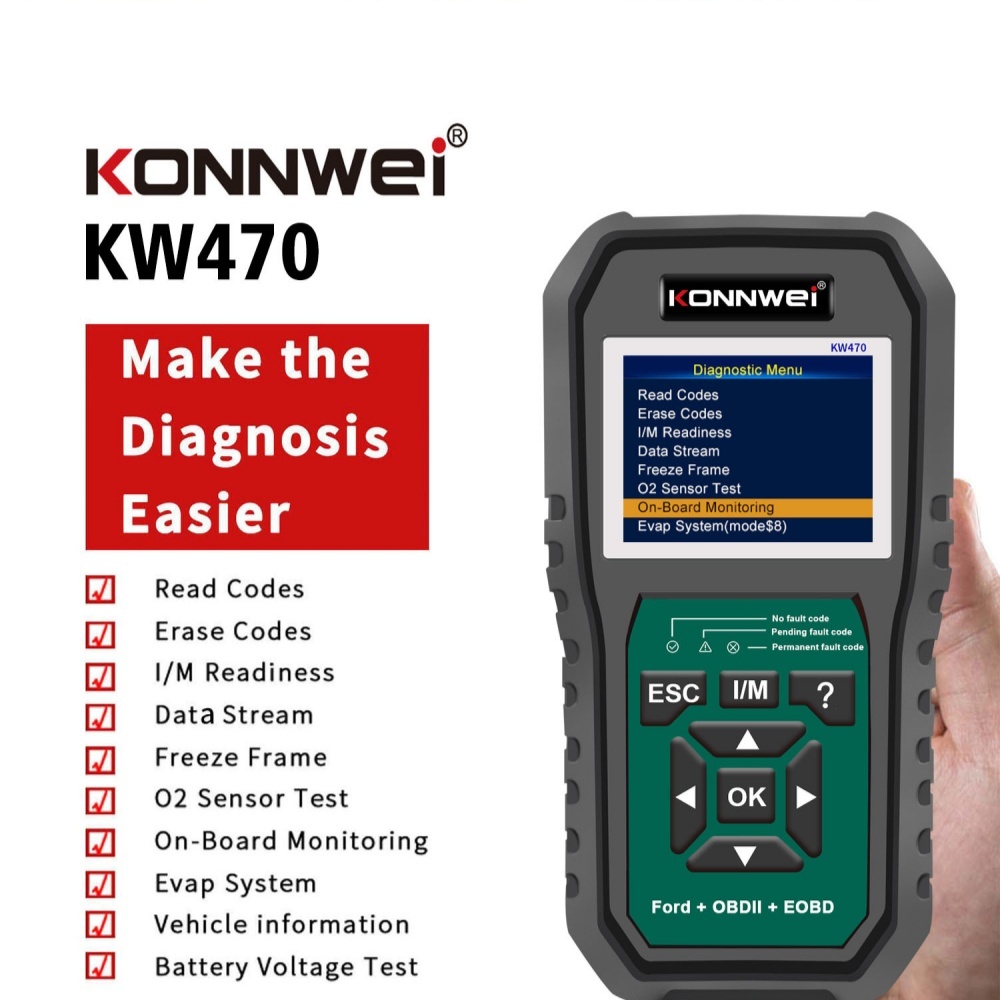

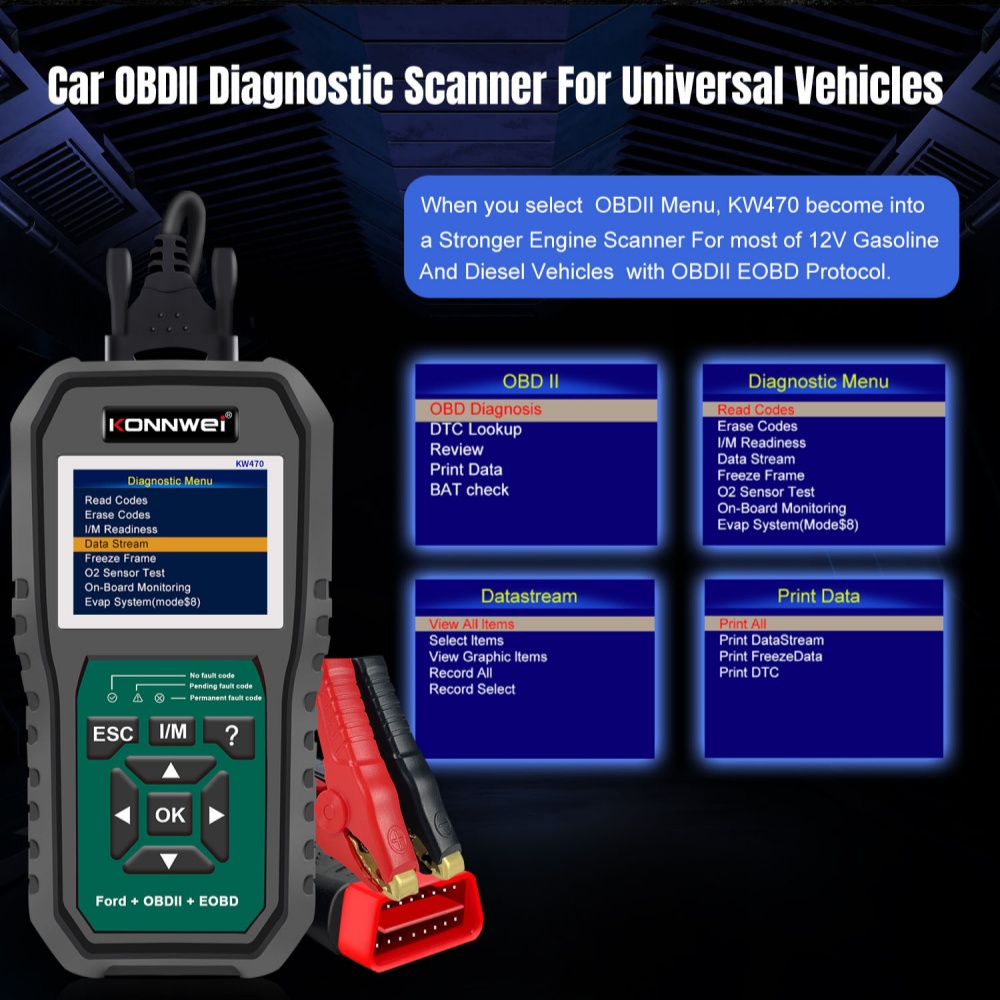

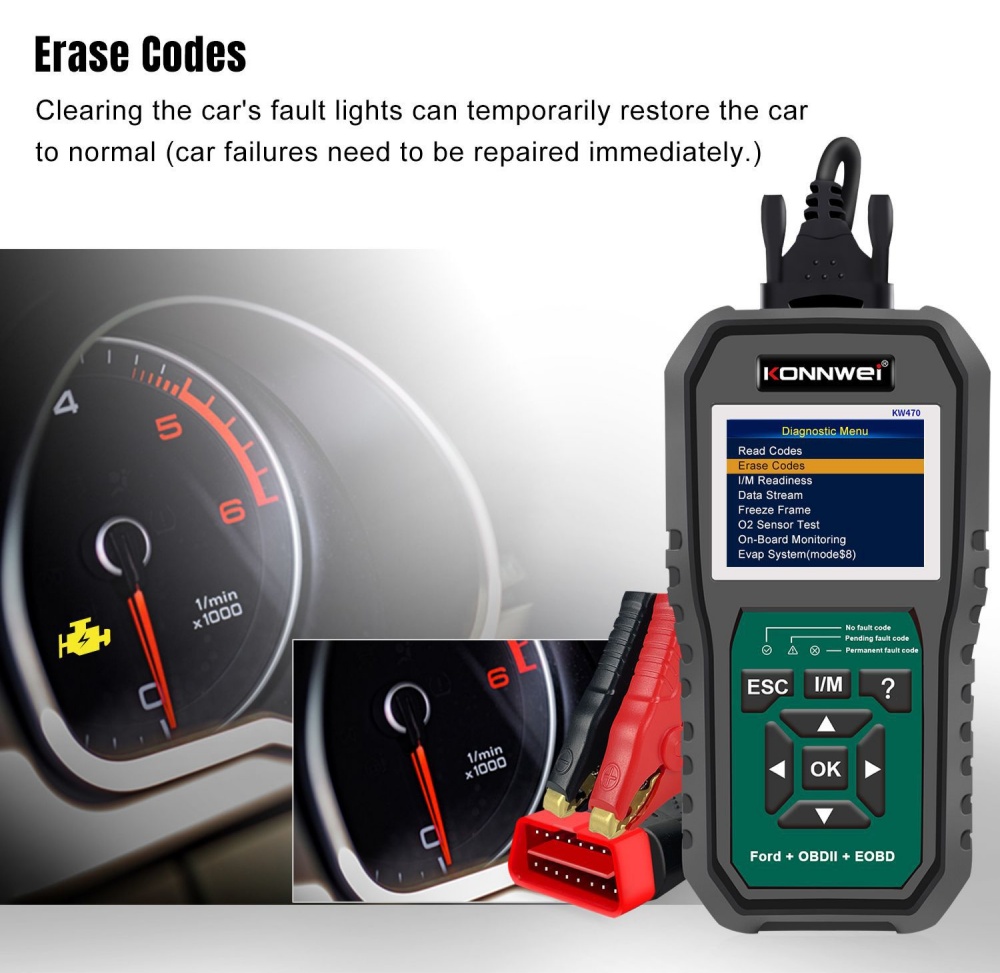

2) Engine system for OBDII vehicles: It Works on all 1996 and newer cars & light trucks that are OBDII compliant (including the VPW, PWM, ISO, KWP 2000 and CAN protocols). Universal Car OBDII/EOBD Engine System Diagnostics OBDII Functions: It mainly includes the following functions: 1) Read Codes This option is used to identify which section of the emission control system has malfunctioned. 2) Erase Codes After reading the retrieved codes from the vehicle and certain repairs have been carried out, you can use this function to erase the codes from the vehicle. Before performing this function, please be sure the vehicle's ignition key is in the ON position with the engine off.

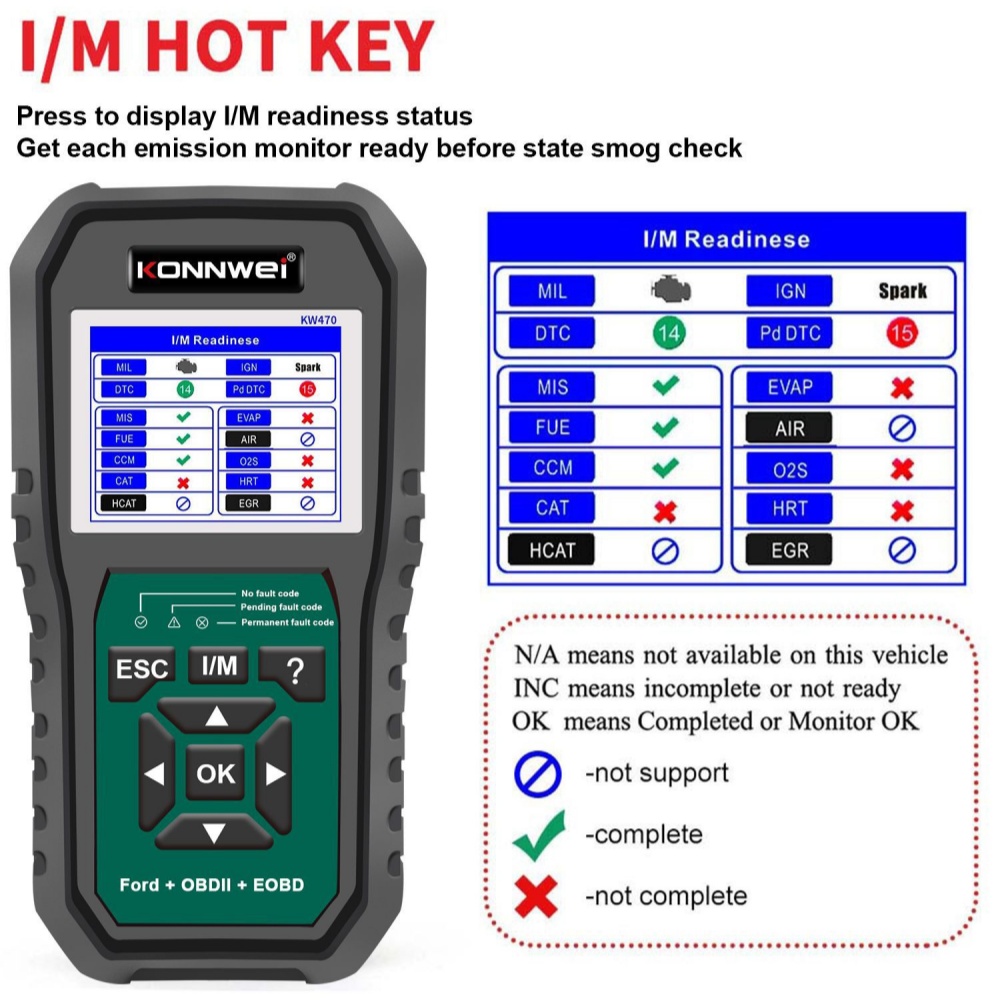

NOTES: 1. Before performing this function, make sure to retrieve and record the trouble codes. 2. After clearing, you should retrieve trouble codes once more or turn the ignition on and retrieve codes again. If there are still some trouble codes in the system, please troubleshoot the code using a factory diagnosis guide, then clear the code and recheck. 3) Live Data This option retrieves and displays live data and parameters from the vehicle's ECU. 4) View Freeze Frame When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault. Note: If DTCs were erased, Freeze Data may not be stored in vehicle memory depending on the vehicle. 5) I/M Readiness I/M refers to Inspection and Maintenance that is legislated by the Government to meet federal clean-air standards. I/M Readiness indicates whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing. The purpose of the I/M Readiness Monitor Status is to indicate which one of the vehicle's Monitors have run and completed their diagnosis and testing, and which ones have not yet run and completed testing and diagnosis of their designated sections of the vehicle's emissions system. I/M Readiness Monitor Status function also can be used(after repair of a fault has been performed) to confirm that the repair has been performed correctly, and/or to check for Monitor Run Status. 6) O2 Monitor Test The results of the O2 sensor test are not live values but instead the results of the ECU's last O2 sensor test, for live O2 sensor readings. Not all test values are applicable to all vehicles. Therefore, the list generated will vary depending on vehicle. In addition, not all the vehicles support the Oxygen Sensors screen. 7) On-Board Monitor Test This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems. 8) Component Test The Component Test function lets you initiate a leak test for the vehicle's Component system. The tool does not perform the leak test, but signals to vehicle's on-board computer are to initiate the test, Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test. 9) Vehicle Info This option displays the vehicle information, such as VIN(Vehicle Identification Number), CID(Calibration ID) and CVN(Calibration Verification Number) 10 ) BAT Check 11 ) Modules Present This option displays the vehicle communication protocol type. 12 ) DTC Lookup This option you can enter the fault code and view the detailed description. 13 ) Review Data This option can replay failures that store records. 14 ) Print Data This option can upload the stored fault code to the computer
Type：
Universal Car Engine Analyzer + Full System diagnostic scanner for Ford Lincoln mercury
